SKB case sizes

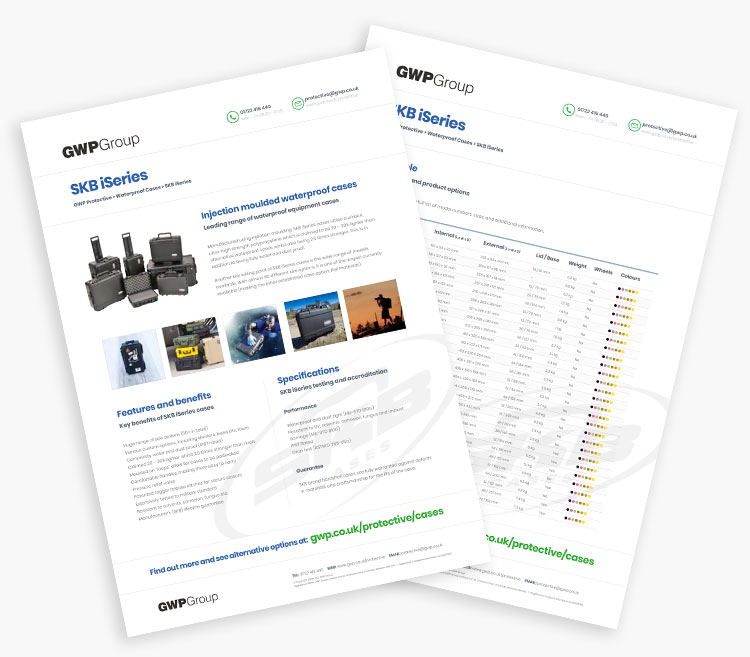

SKB iSeries dimensions and technical info

If you are searching for a specific case size for your business or application, the range of SKB iSeries sizes provides a wealth of choices.

There are 59 different SKB iSeries case sizes in total. The smallest is 197 x 54 x 32 mm, with the largest being 1521 x 457 x 203 mm. Most SKB iSeries cases are available in 6 colours: black, yellow, orange, pink, tan, and olive. Specialist case sizes are also provided for very small, very long, and awkwardly shaped items.

At GWP, we can supply all SKB case sizes and colours. We can also customise any of these with bespoke engineered foam, external printing, and a range of standard options.

SKB case finder

Ref.	Internal (L x W x H)	External (L x W x H)	Lid / Base	Weight	Wheels
3I-0702-1	197 x 54 x 32 mm	225 x 83 x 44 mm	16 / 16 mm	0.2 kg	No
3I-0705-3	191 x 127 x 83 mm	213 x 171 x 95 mm	-	0.6 kg	No
3I-0806-3	216 x 152 x 92 mm	238 x 197 x 111 mm	13 / 79 mm	0.7 kg	No
3I-0907-4	235 x 184 x 101 mm	267 x 241 x 121 mm	25 / 76 mm	1.2 kg	No
3I-0907-6	238 x 187 x 153 mm	270 x 241 x 171 mm	29 / 124 mm	1.4 kg	No
3I-1006-3	273 x 156 x 83 mm	298 x 203 x 98 mm	13 / 70 mm	0.9 kg	No
3I-1208-3	305 x 203 x 83 mm	327 x 246 x 97 mm	13 / 70 mm	1 kg	No
3I-1209-4	305 x 229 x 114 mm	333 x 289 x 140 mm	38 / 76 mm	1.8 kg	No
3I-1309-6	340 x 241 x 165 mm	375 x 305 x 184 mm	38 / 127 mm	2.2 kg	No
3I-1510-4	381 x 267 x 115 mm	413 x 330 x 140 mm	32 / 83 mm	2.1 kg	No
3I-1510-6	381 x 267 x 149 mm	413 x 327 x 171 mm	41 / 108 mm	2.4 kg	No
3I-1510-9	381 x 264 x 228 mm	413 x 330 x 254 mm	44 / 184 mm	2.8 kg	No
3I-1610-10	406 x 254 x 254 mm	438 x 318 x 295 mm	38 / 216 mm	3.3 kg	No
3I-1610-5	406 x 254 x 140 mm	438 x 314 x 159 mm	51 / 89 mm	2.6 kg	No
3I-1706-6	432 x 165 x 165 mm	464 x 229 x 184 mm	51 / 114 mm	2.2 kg	No
3I-1711-6	432 x 292 x 152 mm	464 x 356 x 178 mm	44 / 108 mm	2.7 kg	No
3I-1717-10	432 x 432 x 254 mm	502 x 495 x 273 mm	51 / 203 mm	4.8 kg	No
3I-1717-16	432 x 432 x 400 mm	495 x 495 x 432 mm	51 / 349 mm	6.3 kg	No
3I-1813-5	470 x 330 x 121 mm	502 x 387 x 140 mm	38 / 83 mm	2.6 kg	No
3I-1813-7	470 x 330 x 178 mm	505 x 394 x 200 mm	38 / 140 mm	3.5 kg	No
3I-1914-8	483 x 365 x 203 mm	546 x 432 x 248 mm	51 / 152 mm	6 kg	Yes
3i-2011-10	508 x 292 x 268 mm	559 x 356 x 305 mm	52 / 216 mm	5.8 kg	Yes
3I-2011-7	518 x 292 x 177 mm	552 x 349 x 229 mm	44 / 133 mm	5.1 kg	Yes
3I-2011-8	521 x 292 x 203 mm	559 x 356 x 229 mm	51 / 152 mm	3.6 kg	No
3I-2015-10	521 x 394 x 254 mm	584 x 457 x 292 mm	54 / 200 mm	6.5 kg	Yes
3I-2015-7	521 x 391 x 188 mm	568 x 457 x 213 mm	51 / 137 mm	4.2 kg	No
3I-2213-12	559 x 330 x 299 mm	616 x 394 x 346 mm	48 / 251 mm	7.4 kg	Yes
3I-2215-8	559 x 394 x 203 mm	622 x 464 x 248 mm	51 / 152 mm	7.3 kg	Yes
3I-2217-10	556 x 429 x 264 mm	616 x 495 x 311 mm	48 / 216 mm	9.2 kg	Yes
3I-2217-12	559 x 432 x 318 mm	622 x 495 x 368 mm	48 / 270 mm	9.7 kg	Yes
3I-2217-8	559 x 432 x 200 mm	619 x 495 x 222 mm	51 / 149 mm	5.1 kg	No
3I-2222-12	572 x 565 x 312 mm	635 x 629 x 359 mm	48 / 264 mm	11.3 kg	Yes
3I-2317-14	584 x 432 x 356 mm	654 x 495 x 394 mm	64 / 292 mm	9.4 kg	Yes
3I-2421-7	610 x 533 x 178 mm	667 x 597 x 216 mm	51 / 127 mm	8.6 kg	Yes
3I-2424-10	610 x 610 x 254 mm	673 x 675 x 296 mm	51 / 203 mm	10.7 kg	Yes
3I-2424-14	610 x 610 x 356 mm	679 x 673 x 397 mm	51 / 305 mm	11.5 kg	Yes
3I-2617-12	660 x 445 x 302 mm	727 x 514 x 343 mm	51 / 251 mm	11 kg	Yes
3I-2914-15	737 x 356 x 381 mm	819 x 425 x 400 mm	51 / 330 mm	9.2 kg	Yes
3I-2918-10	737 x 457 x 273 mm	806 x 527 x 318 mm	51 / 222 mm	10.1 kg	Yes
3I-2918-14	737 x 457 x 356 mm	803 x 521 x 400 mm	64 / 292 mm	11 kg	Yes
3I-2922-10	737 x 559 x 264 mm	806 x 622 x 311 mm	48 / 216 mm	12.2 kg	Yes
3I-2922-16	737 x 559 x 407 mm	813 x 629 x 429 mm	51 / 356 mm	12.8 kg	Yes
3I-3016-10	762 x 406 x 254 mm	826 x 476 x 279 mm	51 / 203 mm	8 kg	Yes
3I-3019-12	775 x 495 x 305 mm	851 x 559 x 324 mm	51 / 254 mm	10.7 kg	Yes
3I-3021-18	762 x 533 x 457 mm	838 x 597 x 476 mm	51 / 406 mm	13.6 kg	Yes
3I-3026-15	781 x 660 x 394 mm	857 x 724 x 413 mm	51 / 343 mm	14.3 kg	Yes
3I-3424-12	876 x 622 x 324 mm	953 x 686 x 343 mm	51 / 273 mm	13.6 kg	Yes
3I-3613-12	914 x 343 x 305 mm	984 x 406 x 324 mm	51 / 254 mm	11.2 kg	Yes
3I-3614-6	927 x 368 x 152 mm	991 x 432 x 171 mm	38 / 114 mm	7 kg	Yes
3I-3913-12	998 x 345 x 322 mm	1067 x 406 x 356 mm	51 / 271 mm	10.1 kg	Yes
3I-4213-12	1076 x 343 x 305 mm	1143 x 406 x 330 mm	51 / 254 mm	10.4 kg	Yes
3I-4214-5	1080 x 368 x 134 mm	1143 x 432 x 159 mm	32 / 102 mm	7.5 kg	Yes
3I-4217-7	1080 x 432 x 191 mm	1143 x 502 x 210 mm	51 / 140 mm	9.3 kg	Yes
3I-4414-10	1130 x 368 x 254 mm	1194 x 432 x 276 mm	-	10.4 kg	Yes
3I-4719-8	1194 x 483 x 203 mm	1270 x 546 x 216 mm	51 / 152 mm	10.9 kg	Yes
3I-4909-5	1241 x 229 x 127 mm	1283 x 295 x 152 mm	38 / 89 mm	5.7 kg	No
3I-5014-6	1283 x 368 x 152 mm	1346 x 432 x 171 mm	38 / 114 mm	8.5 kg	Yes
3I-5616-9	1422 x 406 x 229 mm	1518 x 476 x 267 mm	51 / 178 mm	12.9 kg	Yes
3I-6018-8	1521 x 457 x 203 mm	1588 x 508 x 241 mm	51 / 152 mm	13 kg	Yes
