Peli-Hardigg™ ISP2 Cases (Inter Stacking Pattern Case)

Inter-Stacking Pattern Cases

Rotomolded Peli military cases for safe transit of goods

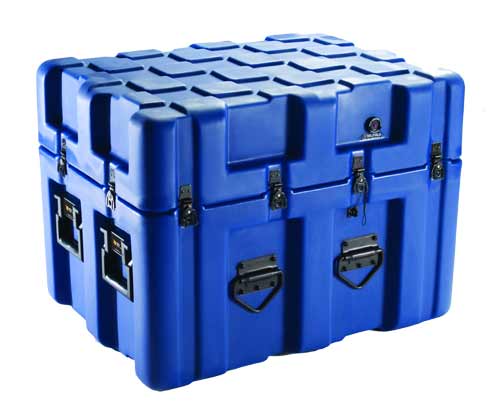

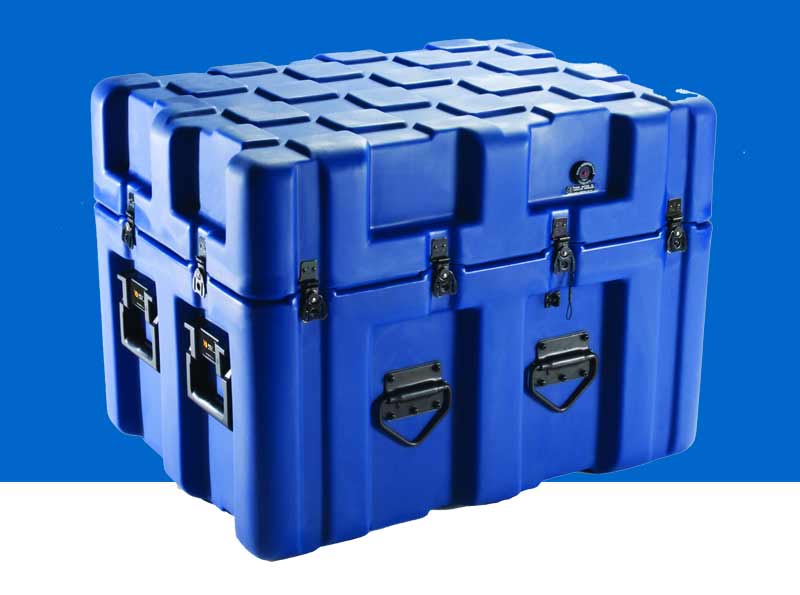

The Peli-Hardigg ISP2 cases – inter stacking pattern cases – are rotationally moulded plastic containers with a unique stacking pattern. Originally developed by Hardigg, these cases can help to eliminate load movement during transit, in turn minimising damage to the items being shipped and the cases themselves.

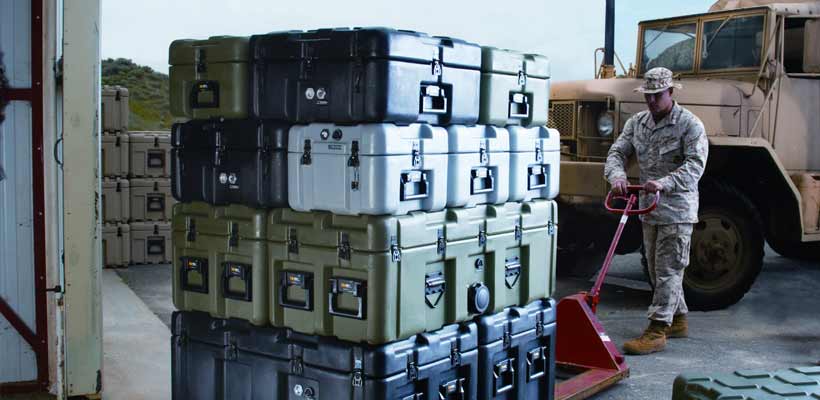

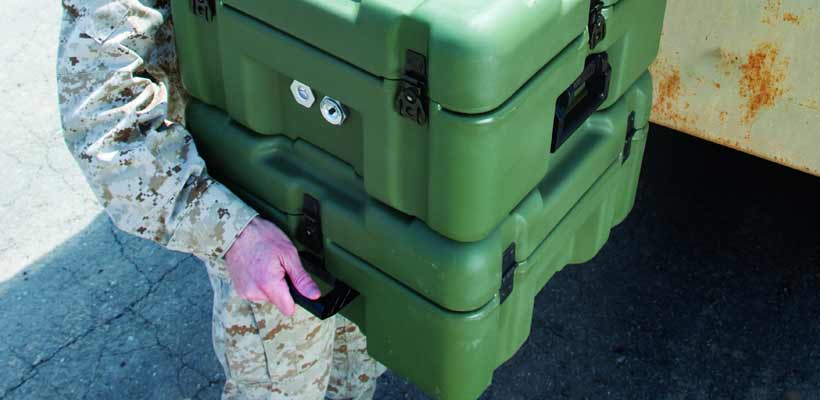

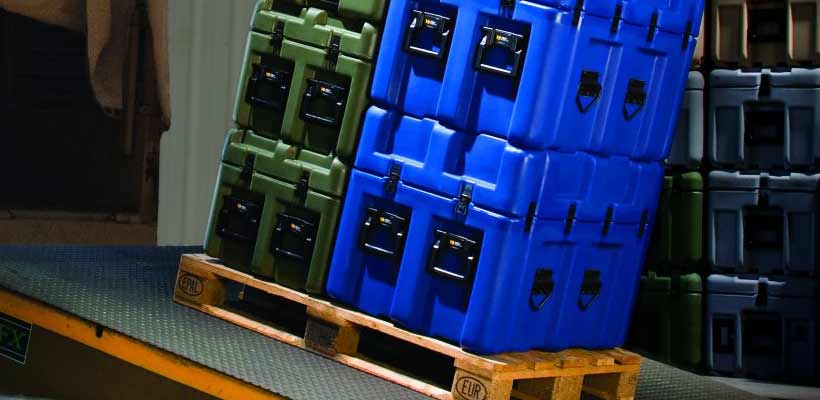

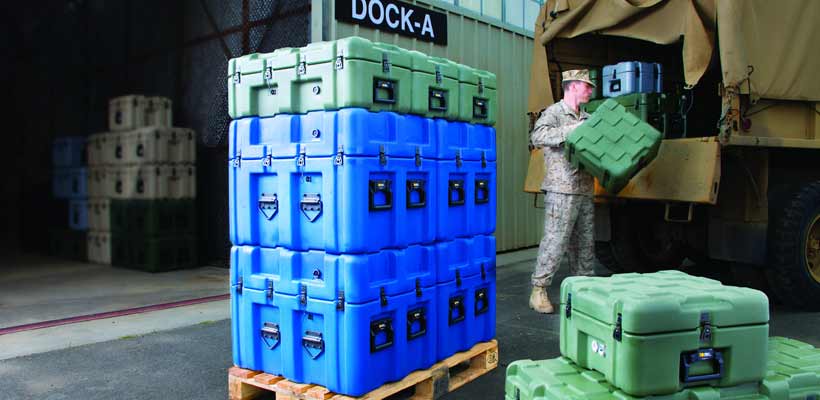

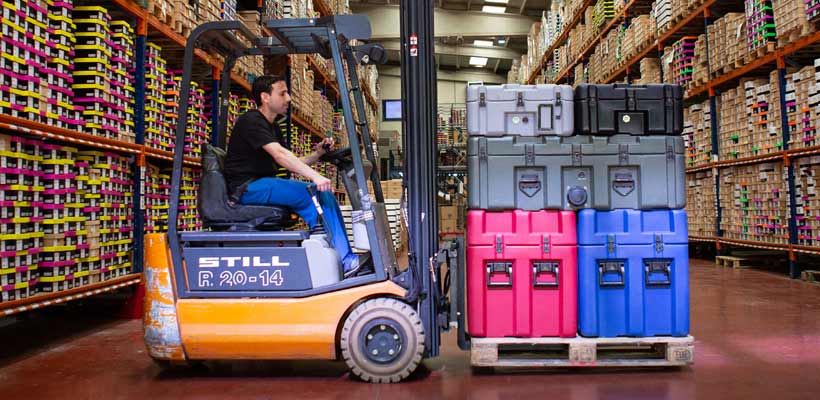

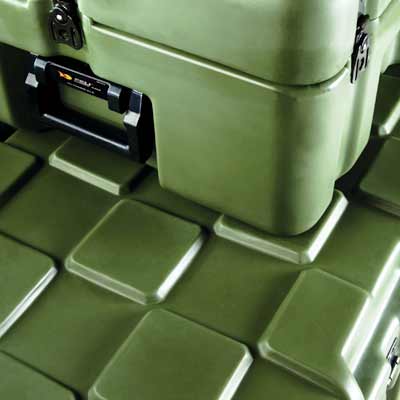

The 10 x 10 cm square pattern matches between the cases top and bottom surfaces, locking into place quickly and easily. The 64 size options have also been designed to maximise space efficiency across standard logistics platforms, including NATO pallets, JMIC containers, 463L pallets and sea containers.

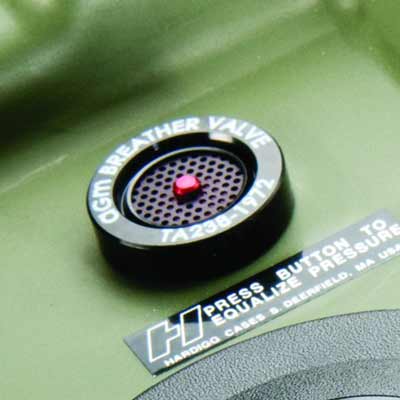

With all of the protection you would expect from a Hardigg roto mold case, including O ring seal, pressure relief valve and IP68 rating, Peli ISP2 cases are the ideal choice for the transit of important and / or expensive equipment.

ISP2 Case Options

Full table(s) of Peli ISP2 case options

The below tables provide full information on the Peli Hardigg ISP 2 roto mold cases – including dimensions, weights, lid / base ratio and even the relevant NATO stock numbers. These have been split into small, medium and large sizes for clarity.

If you cannot see the information you are looking for however, then please do not hesitate to get in touch on 01722 416 440 or by emailing protective@gwp.co.uk

Small Peli ISP2 Case Sizes

View dimensions, weights, colours etc. of the small Peli Hardigg ISP2 cases

Product	Ref.	Internal (L x W x H)	External (L x W x H)	Lid / Base	Weight	Colours
Peli ISP2	EU030030-1010	215 x 215 x 170 mm	300 x 300 x 200 mm	100 / 100 mm	2.7 kg
Peli ISP2	EU030030-3010	215 x 215 x 370 mm	300 x 300 x 400 mm	100 / 300 mm	3.9 kg
Peli ISP2	EU035035-1010	265 x 265 x 170 mm	350 x 350 x 200 mm	100 / 100 mm	3.5 kg
Peli ISP2	EU040030-1010	315 x 215 x 170 mm	400 x 300 x 200 mm	100 / 100 mm	3.4 kg
Peli ISP2	EU040030-2010	315 x 215 x 270 mm	400 x 300 x 300 mm	100 / 200 mm	4.1 kg
Peli ISP2	EU040040-1010	315 x 315 x 170 mm	400 x 400 x 200 mm	100 / 100 mm	4.3 kg
Peli ISP2	EU040040-2010	315 x 315 x 270 mm	400 x 400 x 300 mm	100 / 200 mm	5.1 kg
Peli ISP2	EU050050-2010	415 x 415 x 270 mm	500 x 500 x 300 mm	100 / 200 mm	6.9 kg
Peli ISP2	EU050050-3010	415 x 415 x 370 mm	500 x 500 x 400 mm	100 / 300 mm	7.9 kg
Peli ISP2	EU060040-2010	515 x 315 x 270 mm	600 x 400 x 300 mm	100 / 200 mm	6.9 kg
Peli ISP2	EU060040-3010	515 x 315 x 370 mm	600 x 400 x 400 mm	100 / 300 mm	7.9 kg
Peli ISP2	EU060040-4010	515 x 315 x 470 mm	600 x 400 x 500 mm	100 / 400 mm	8.9 kg
Peli ISP2	EU060060-2010	515 x 515 x 270 mm	600 x 600 x 300 mm	100 / 200 mm	9.4 kg
Peli ISP2	EU060060-2020	515 x 515 x 370 mm	600 x 600 x 400 mm	200 / 200 mm	10.6 kg
Peli ISP2	EU060060-3010	515 x 515 x 370 mm	600 x 600 x 400 mm	100 / 300 mm	10.6 kg
Peli ISP2	EU060060-3020	515 x 515 x 470 mm	600 x 600 x 500 mm	200 / 300 mm	11.8 kg
Peli ISP2	EU060060-4010	515 x 515 x 470 mm	600 x 600 x 500 mm	100 / 400 mm	11.8 kg
Peli ISP2	EU060060-4020	515 x 515 x 570 mm	600 x 600 x 600 mm	200 / 400 mm	13 kg
Peli ISP2	EU060060-5010	515 x 515 x 570 mm	600 x 600 x 600 mm	100 / 500 mm	13 kg
Peli ISP2	EU060060-5020	515 x 515 x 670 mm	600 x 600 x 700 mm	200 / 500 mm	14.2 kg
Product	Ref.	Internal (L x W x H)	External (L x W x H)	Lid / Base	Weight	Colours

Medium Peli ISP2 Case Sizes

View dimensions, weights, colours etc. of the mid-sized Peli Hardigg ISP2 cases

Product	Ref.	Internal (L x W x H)	External (L x W x H)	Lid / Base	Weight	Colours
Peli ISP2	EU070070-3010	615 x 615 x 370 mm	700 x 700 x 400 mm	100 / 300 mm	13.5 kg
Peli ISP2	EU070070-3020	615 x 615 x 470 mm	700 x 700 x 500 mm	200 / 300 mm	14.8 kg
Peli ISP2	EU070070-4010	615 x 615 x 470 mm	700 x 700 x 500 mm	100 / 400 mm	14.8 kg
Peli ISP2	EU070070-4020	615 x 615 x 570 mm	700 x 700 x 600 mm	200 / 400 mm	16.5 kg
Peli ISP2	EU070070-5010	615 x 615 x 570 mm	700 x 700 x 600 mm	100 / 500 mm	16.5 kg
Peli ISP2	EU070070-5020	615 x 615 x 670 mm	700 x 700 x 700 mm	200 / 500 mm	18.2 kg
Peli ISP2	EU070070-3040	615 x 615 x 670 mm	700 x 700 x 700 mm	400 / 300 mm	18.2 kg
Peli ISP2	EU070070-4040	615 x 615 x 770 mm	700 x 700 x 800 mm	400 / 400 mm	19.1 kg
Peli ISP2	EU070070-5040	615 x 615 x 870 mm	700 x 700 x 900 mm	400 / 500 mm	19.6 kg
Peli ISP2	EU080040-2010	715 x 315 x 270 mm	800 x 400 x 300 mm	100 / 200 mm	9.4 kg
Peli ISP2	EU080040-2020	715 x 315 x 370 mm	800 x 400 x 400 mm	200 / 200 mm	10.6 kg
Peli ISP2	EU080040-3010	715 x 315 x 370 mm	800 x 400 x 400 mm	100 / 300 mm	10.6 kg
Peli ISP2	EU080040-3020	715 x 315 x 470 mm	800 x 400 x 500 mm	200 / 300 mm	11.8 kg
Peli ISP2	EU080060-2010	715 x 515 x 270 mm	800 x 600 x 300 mm	100 / 200 mm	11.9 kg
Peli ISP2	EU080060-2020	715 x 515 x 370 mm	800 x 600 x 400 mm	200 / 200 mm	13.3 kg
Peli ISP2	EU080060-4010	715 x 515 x 470 mm	800 x 600 x 500 mm	100 / 400 mm	14.7 kg
Peli ISP2	EU080060-4020	715 x 515 x 570 mm	800 x 600 x 600 mm	200 / 400 mm	16.4 kg
Peli ISP2	EU080060-5010	715 x 515 x 570 mm	800 x 600 x 600 mm	100 / 500 mm	16.4 kg
Peli ISP2	EU080060-5020	715 x 515 x 670 mm	800 x 600 x 700 mm	200 / 500 mm	18 kg
Peli ISP2	EU080080-3010	715 x 715 x 370 mm	800 x 800 x 400 mm	100 / 300 mm	16.9 kg
Peli ISP2	EU080080-4010	715 x 715 x 470 mm	800 x 800 x 500 mm	100 / 400 mm	21.5 kg
Peli ISP2	EU080080-3020	715 x 715 x 470 mm	800 x 800 x 500 mm	200 / 300 mm	21.5 kg
Peli ISP2	EU080080-4020	715 x 715 x 570 mm	800 x 800 x 600 mm	200 / 400 mm	21.1 kg
Peli ISP2	EU090045-2010	815 x 365 x 270 mm	900 x 450 x 300 mm	100 / 200 mm	13 kg
Peli ISP2	EU090050-4010	815 x 415 x 470 mm	900 x 500 x 500 mm	100 / 400 mm	14.2 kg
Peli ISP2	EU090090-2010	815 x 815 x 240 mm	900 x 900 x 300 mm	100 / 200 mm	23 kg
Product	Ref.	Internal (L x W x H)	External (L x W x H)	Lid / Base	Weight	Colours

Large Peli ISP2 Case Sizes

View dimensions, weights, colours etc. of the large Peli Hardigg ISP2 cases

Product	Ref.	Internal (L x W x H)	External (L x W x H)	Lid / Base	Weight	Colours
Peli ISP2	EU100050-3010	915 x 415 x 370 mm	1000 x 500 x 400 mm	100 / 300 mm	14.1 kg
Peli ISP2	EU100050-4010	915 x 415 x 470 mm	1000 x 500 x 500 mm	100 / 400 mm	16 kg
Peli ISP2	EU100050-5010	915 x 415 x 570 mm	1000 x 500 x 600 mm	100 / 500 mm	17.9 kg
Peli ISP2	EU100060-3010	915 x 515 x 370 mm	1000 x 600 x 400 mm	100 / 300 mm	16.8 kg
Peli ISP2	EU100060-4010	915 x 515 x 470 mm	1000 x 600 x 500 mm	100 / 400 mm	18.1 kg
Peli ISP2	EU100060-5010	915 x 515 x 570 mm	1000 x 600 x 600 mm	100 / 500 mm	19.8 kg
Peli ISP2	EU110070-3010	1015 x 615 x 370 mm	1100 x 700 x 400 mm	100 / 300 mm	21.3 kg
Peli ISP2	EU120050-2510	1115 x 415 x 320 mm	1200 x 500 x 350 mm	100 / 250 mm	15.5 kg
Peli ISP2	EU120050-3010	1115 x 415 x 370 mm	1200 x 500 x 400 mm	100 / 300 mm	16.8 kg
Peli ISP2	EU120050-2525	1115 x 415 x 470 mm	1200 x 500 x 500 mm	250 / 250 mm	18.1 kg
Peli ISP2	EU120050-3025	1115 x 415 x 520 mm	1200 x 500 x 550 mm	250 / 300 mm	18.9 kg
Peli ISP2	EU120050-2530	1115 x 415 x 520 mm	1200 x 500 x 550 mm	300 / 250 mm	18.9 kg
Peli ISP2	EU120050-3030	1115 x 415 x 570 mm	1200 x 500 x 600 mm	300 / 300 mm	19.8 kg
Peli ISP2	EU120060-3010	1115 x 515 x 470 mm	1200 x 600 x 400 mm	100 / 300 mm	19.8 kg
Peli ISP2	EU120060-3020	1115 x 515 x 470 mm	1200 x 600 x 500 mm	200 / 300 mm	19.8 kg
Peli ISP2	EU120060-3030	1115 x 515 x 570 mm	1200 x 600 x 600 mm	300 / 300 mm	22 kg
Peli ISP2	EU120060-5010W	1115 x 515 x 570 mm	1200 x 600 x 600 mm	100 / 500 mm	22 kg
Peli ISP2	EU120060-5020W	1115 x 515 x 670 mm	1200 x 600 x 700 mm	200 / 500 mm	24.5 kg
Peli ISP2	EU120060-5030W	1115 x 515 x 770 mm	1200 x 600 x 800 mm	300 / 500 mm	27 kg
Peli ISP2	EU120090-2010	1115 x 815 x 240 mm	1200 x 900 x 300 mm	100 / 200 mm	29.5 kg
Peli ISP2	EU160060-3020	1515 x 515 x 470 mm	1600 x 600 x 500 mm	200 / 300 mm	29 kg
Product	Ref.	Internal (L x W x H)	External (L x W x H)	Lid / Base	Weight	Colours

Peli Hardigg ISP2 Case Overview

Key benefits of Peli inter stacking pattern cases

The following points cover the main features and benefits of the Peli Hardigg inter stacking pattern cases (ISP2).

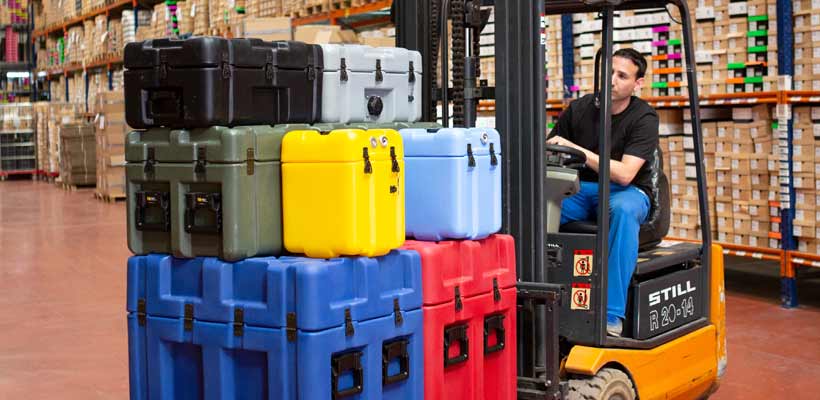

Virtually eliminates load movement with a unique Inter-Stacking Pattern (ISP).

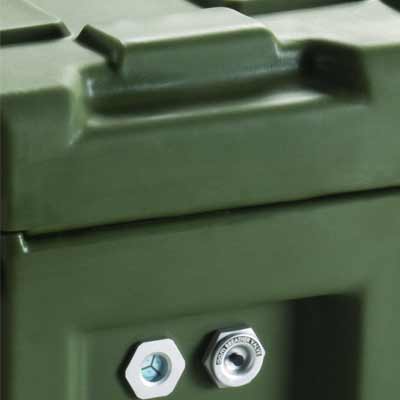

Equipped with a silicone sponge O-ring to enable watertight seal

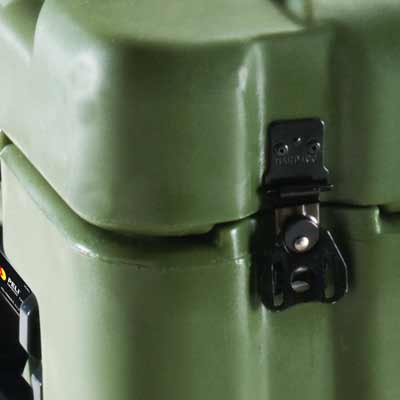

Moulded-in, tongue-in-groove gasketed parting lines for splash resistance and tight seals, even after impact
IP68 rated (dust and watertight)
Designed to maximise efficiency of standard logistics
Compatible with standard pallets, NATO pallets, JMIC containers, 463L pallets and sea containers

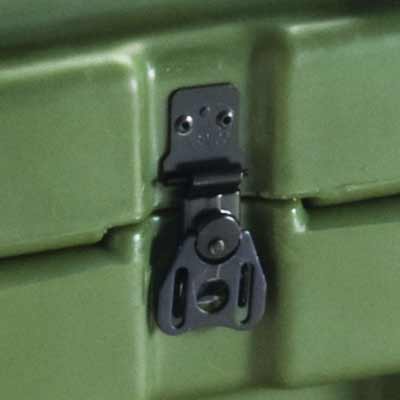

Positive anti-shear locks, which prevent lid separation after impact, and reduce stress on hardware

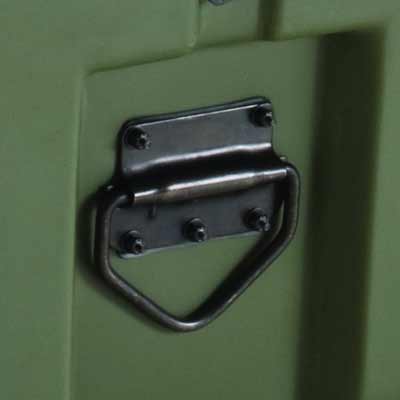

Peli Hardigg patented “comfort grip” handles for easier handling
Moulded in metal inserts (catch and hinge attachment points) to distribute load to case walls

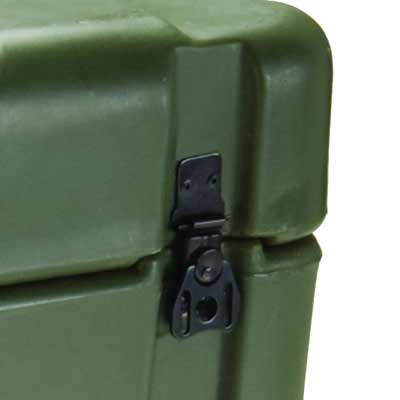

Recessed hardware to protect from impact and enable snag free transit
Manufactured in Europe

Alternative Rotomolded Cases

Other protective case options available

Peli™ Single Lid

Market leading Peli / Hardigg roto mold cases

Rack Mount (19")

Specialist protection for electronics equipment

All Roto Mould Cases

View all of the rotationally moulded waterproof cases

All Waterproof Cases

Click here to see the full range of waterproof cases

Buy Peli ISP2 Cases

Official UK reseller of Peli Hardigg cases

Whether you require the toughest protective cases available (such as the Peli ISP2 range), standard waterproof cases with foam inserts, specialist rack mount units or a custom built flight case, GWP Protective can offer your business all this and more.

Despite being an official supplier of a huge range of branded case options (including Peli, SKB, Explorer, B&W, Zarges etc.), GWP remain completely independent. Not only does this mean you can select from the widest range of protective cases, it also allows you to benefit from truly impartial and unbiased advice on the best case for your specific circumstances / requirements.

Add in the ability to source custom foam inserts at the same time (GWP are also expert foam converters), no obligation quotes on any case, and the highest levels of customer service and support, and it is clear why a huge number of businesses just like yours trust GWP to protect their important products and equipment.

Get in touch today to see just how you could benefit.
