Corstat® Reel Storage: ESD Safe Bench Mount Units

Anti-Static Reel Racks

A flexible bench mount solution

Catering for a wide range of reels, you can source 7” and 15” Corstat® Reel Storage Systems from GWP. Manufactured in single, double, or triple units, this range of configurations ensures that there is a suitable system whatever your application.

Corstat® Reel Storage also offers high performance ESD protection, being a cost-effective alternative to plastic reel racks. Read More

Available Colours:

No obligation (and no pressure) quotes for any anti static packaging
Free and impartial advice from UK based experts
Competitive pricing and wide distributor network

Description

More info on the Corstat® Reel Storage system

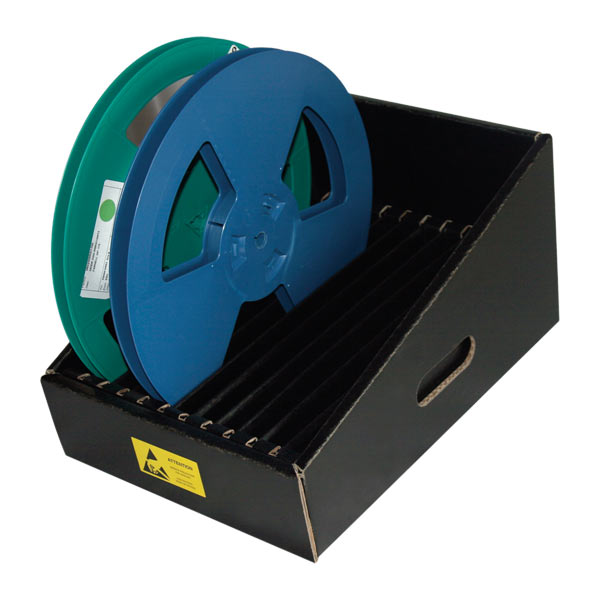

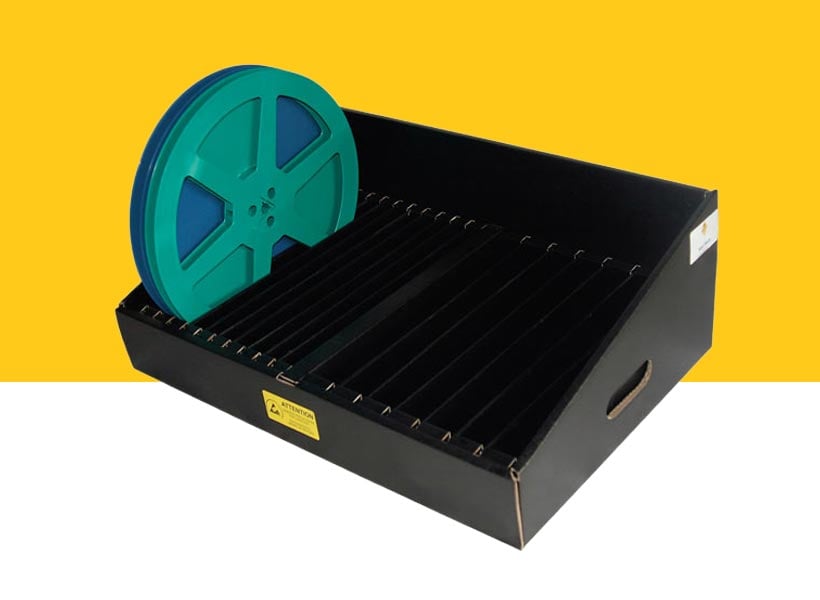

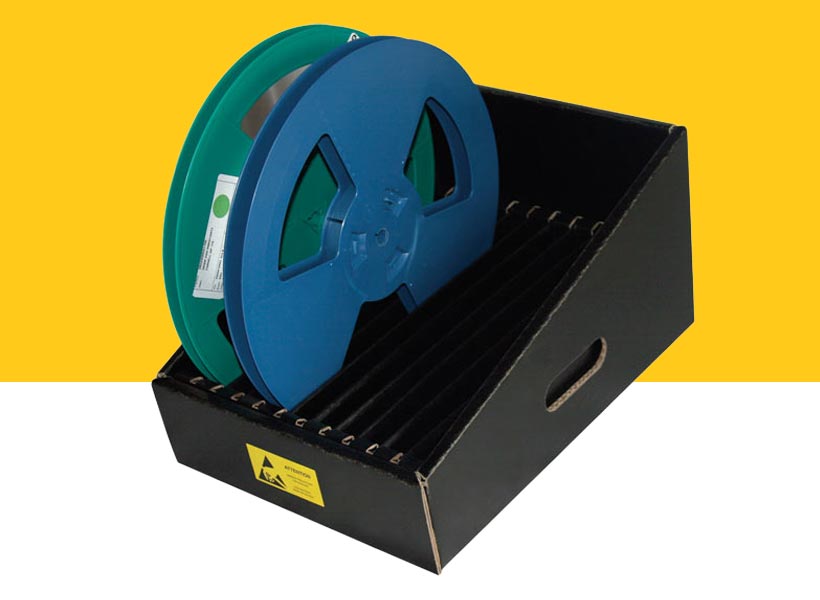

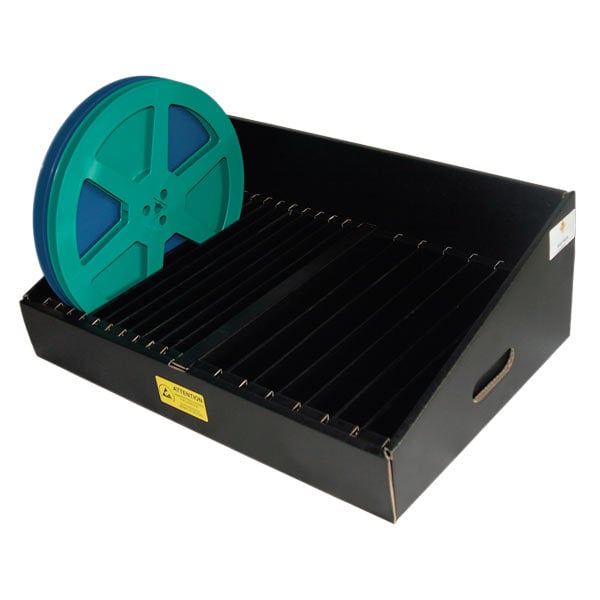

The Corstat® conductive Reel Storage system from GWP Conductive is a new and flexible bench mount storage system, catering for 7″ and 15″ component reels.

There is a choice of materials available too, with Corstat® coated fibre board as standard, or conductive Corriplast® for clean room or high durability requirements.

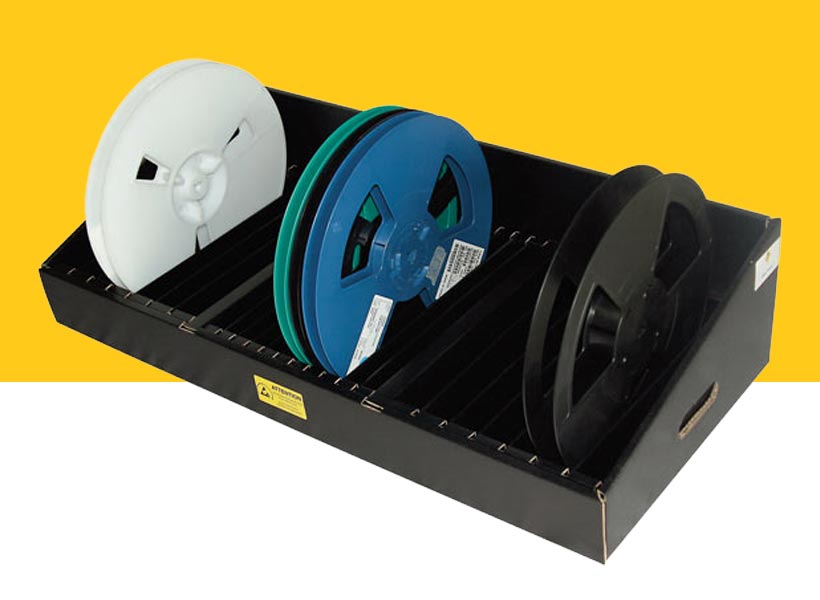

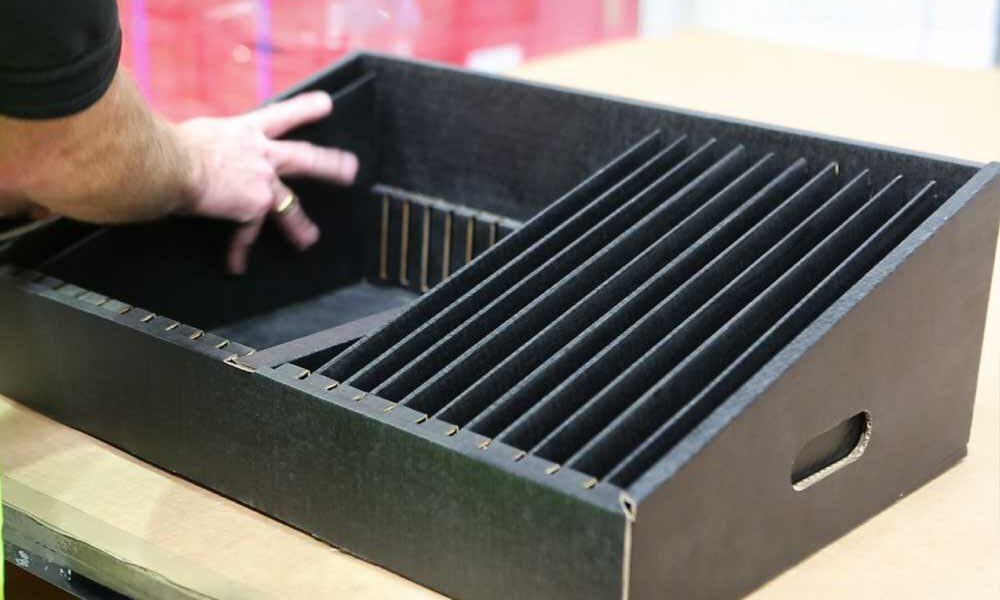

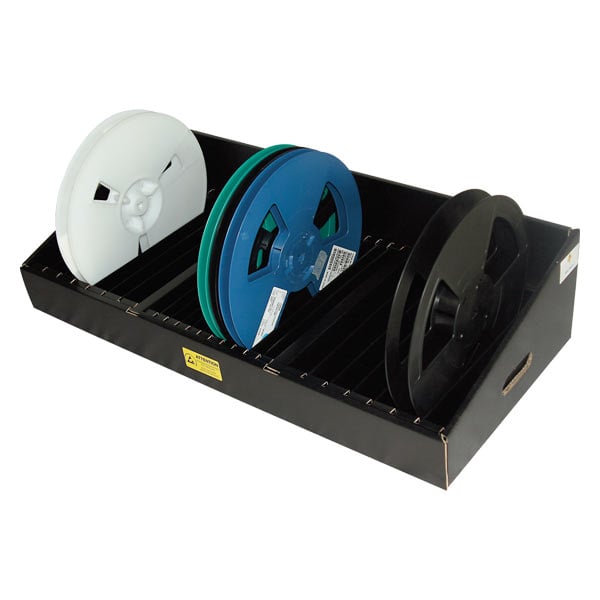

The storage system is available in single, double, and triple module units and the division spacing can be 18mm or 32mm to suit the application. The units are supplied fully assembled and configured to suit your exact requirements.

Whatever configuration you select, these conductive reel racks provide a cost-effective alternative to moulded plastic equivalents.

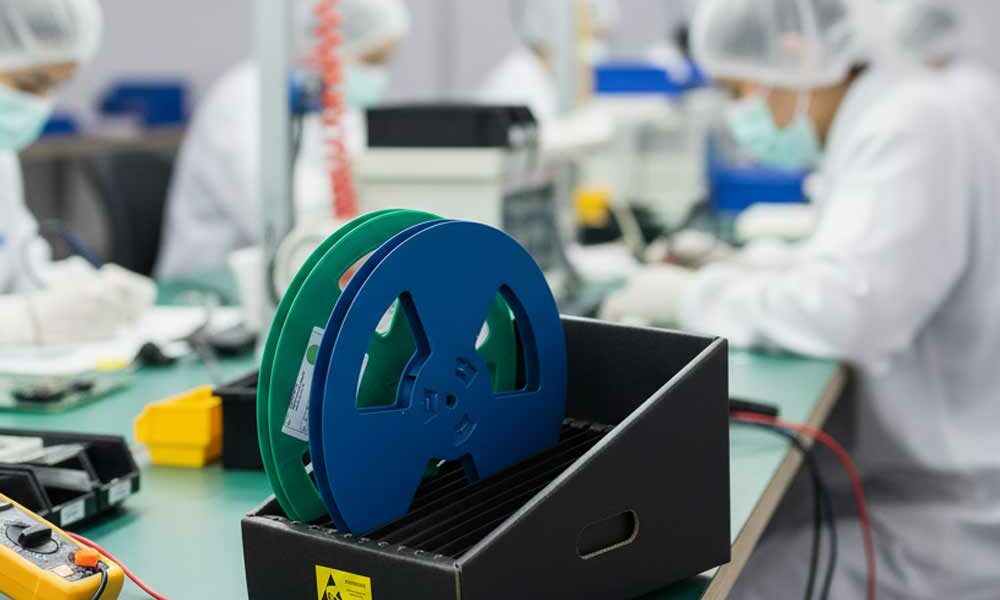

Protect ESD sensitive items during storage and / or picking

Besides the typically lower cost of the Corstat® Reel Storage Systems when compared with moulded plastic options, there are a number of other benefits to your business as well.

For example, Corstat® Reel Racks are lighter and easier to move / handle than often bulky plastic versions (this enhanced further with hand holes integral to the designs).

The nature of the material also means they can be repeatedly handled with no PPE requirements.

You can also specify custom sizes / configurations for your Corstat® or Corriplast® Reel Racks, allowing you to source a solution that caters to your specific requirements.

Corstat® Reel Racks are also completely recyclable and biodegradable, meaning that at the end of their life they can be easily disposed of without harming the environment.

Despite this, performance isn’t compromised, with Corstat® coating have a 10-year performance guarantee.

So, why settle for the more limited options – and higher costs – of moulded plastic reel storage systems when Corstat® and Corriplast® equivalents offer the same performance at a lower cost? Now you can protect your reels during storage without compromise.

Key benefits of Corstat® Reel Racks at a glance

Exceptional ESD protection for both Corstat® & Corriplast® materials
Corriplast® provides additional physical protection, comparable to moulded plastics
Custom designs can be manufactured to suit specific requirements
Both Corstat® & Corriplast® materials are safe to use and recyclable
Enables the efficient handling of multiple reels in a single trip
Held in stock to minimise lead times (usually available within 48 hours)
Corriplast® versions offer enhanced lifespan, equivalent to moulded plastics
Fluted polypropylene versions can also be easily cleaned, further enhancing lifespan
All material options considerably lower in cost than moulded plastics

Size Table

Dimensions and product options

Please see below for a full list of model numbers, sizes, and additional information, or alternatively download the datasheet for the information in PDF format.

Part No.	External Size	Cell Width	No. Cells
RR7118	273 x 240 x 200 mm	18 mm	11
RR7132	273 x 240 x 200 mm	32 mm	7
RR7218	573 x 240 x 200 mm	18 mm	22
RR7232	573 x 240 x 200 mm	32 mm	14
RR7318	860 x 240 x 200 mm	18 mm	33
RR7332	860 x 240 x 200 mm	32 mm	21
RR15118	273 x 385 x 200 mm	18 mm	11
RR15132	273 x 385 x 200 mm	32 mm	7
RR15218	573 x 385 x 200 mm	18 mm	22
RR15232	573 x 385 x 200 mm	32 mm	14
RR15318	860 x 385 x 200 mm	18 mm	33
RR15332	860 x 385 x 200 mm	32 mm	21

Free Quotes / Advice

Buy Corstat® reel storage bins

Being able to offer products like the conductive reel storage system shows that GWP Conductive are more than simply an ESD safe packaging supplier.

The reel rack product – like so many others in the stock range – have been created by an experienced design team genuinely looking to solve the problems companies like yours have with static and the damage it causes.

But only by having an extensive knowledge of how static behaves, has it been possible to create the range of bins, boxes, racks, and totes that are now available to your business.

All of the stock Corstat® and Corriplast® products are available within 48 hours, but there will be the odd occasion where one of these isn’t completely perfect for your specific application. This is where the designers come in again – being able to create a bespoke solution that meets your exact brief.

This solution can then be manufactured in a modern, well equipped factory specialising in packaging, with a dedicated team of customer support staff helping the whole project run smoothly at all times.
