Peli-Hardigg™ ISP2 case sizes

Peli ISP2 case dimensions and technical info

If you are looking for a tough, durable and long-lasting case, this Peli-Hardigg™ ISP2 case size table can help you find the best option.

Although less extensive than the Single Lid range, Peli ISP2 cases are still available in over 65 sizes. The smallest case is 215 x 215 x 170mm, with the largest being 1515 x 515 x 470mm. ISP2 cases are available in nine standard colours: black, grey, white, yellow, orange, red, blue, olive green and desert tan.

Our case experts at GWP are happy to advise on the best ISP2 or other rota mould cases for your specific application, product, or market. All advice is free and completely unbiased.

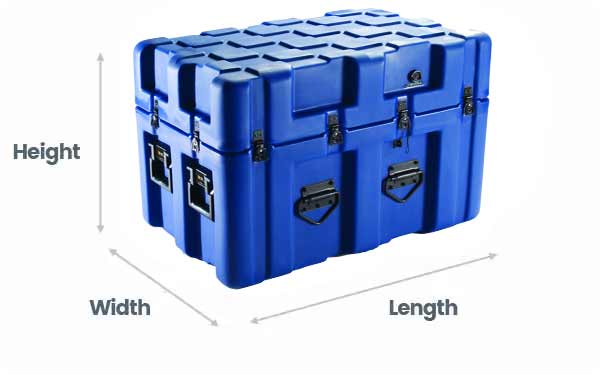

Peli-Hardigg™ ISP2 size chart

Small Peli ISP2 case sizes

Ref.	Internal (L x W x H)	External (L x W x H)	Lid / Base	Weight
EU030030-1010	215 x 215 x 170 mm	300 x 300 x 200 mm	100 / 100 mm	2.7 kg
EU030030-3010	215 x 215 x 370 mm	300 x 300 x 400 mm	100 / 300 mm	3.9 kg
EU035035-1010	265 x 265 x 170 mm	350 x 350 x 200 mm	100 / 100 mm	3.5 kg
EU040030-1010	315 x 215 x 170 mm	400 x 300 x 200 mm	100 / 100 mm	3.4 kg
EU040030-2010	315 x 215 x 270 mm	400 x 300 x 300 mm	100 / 200 mm	4.1 kg
EU040040-1010	315 x 315 x 170 mm	400 x 400 x 200 mm	100 / 100 mm	4.3 kg
EU040040-2010	315 x 315 x 270 mm	400 x 400 x 300 mm	100 / 200 mm	5.1 kg
EU050050-2010	415 x 415 x 270 mm	500 x 500 x 300 mm	100 / 200 mm	6.9 kg
EU050050-3010	415 x 415 x 370 mm	500 x 500 x 400 mm	100 / 300 mm	7.9 kg
EU060040-2010	515 x 315 x 270 mm	600 x 400 x 300 mm	100 / 200 mm	6.9 kg
EU060040-3010	515 x 315 x 370 mm	600 x 400 x 400 mm	100 / 300 mm	7.9 kg
EU060040-4010	515 x 315 x 470 mm	600 x 400 x 500 mm	100 / 400 mm	8.9 kg
EU060060-2010	515 x 515 x 270 mm	600 x 600 x 300 mm	100 / 200 mm	9.4 kg
EU060060-2020	515 x 515 x 370 mm	600 x 600 x 400 mm	200 / 200 mm	10.6 kg
EU060060-3010	515 x 515 x 370 mm	600 x 600 x 400 mm	100 / 300 mm	10.6 kg
EU060060-3020	515 x 515 x 470 mm	600 x 600 x 500 mm	200 / 300 mm	11.8 kg
EU060060-4010	515 x 515 x 470 mm	600 x 600 x 500 mm	100 / 400 mm	11.8 kg
EU060060-4020	515 x 515 x 570 mm	600 x 600 x 600 mm	200 / 400 mm	13 kg
EU060060-5010	515 x 515 x 570 mm	600 x 600 x 600 mm	100 / 500 mm	13 kg
EU060060-5020	515 x 515 x 670 mm	600 x 600 x 700 mm	200 / 500 mm	14.2 kg

Medium Peli ISP2 case sizes

Ref.	Internal (L x W x H)	External (L x W x H)	Lid / Base	Weight
EU070070-3010	615 x 615 x 370 mm	700 x 700 x 400 mm	100 / 300 mm	13.5 kg
EU070070-3020	615 x 615 x 470 mm	700 x 700 x 500 mm	200 / 300 mm	14.8 kg
EU070070-4010	615 x 615 x 470 mm	700 x 700 x 500 mm	100 / 400 mm	14.8 kg
EU070070-4020	615 x 615 x 570 mm	700 x 700 x 600 mm	200 / 400 mm	16.5 kg
EU070070-5010	615 x 615 x 570 mm	700 x 700 x 600 mm	100 / 500 mm	16.5 kg
EU070070-5020	615 x 615 x 670 mm	700 x 700 x 700 mm	200 / 500 mm	18.2 kg
EU070070-3040	615 x 615 x 670 mm	700 x 700 x 700 mm	400 / 300 mm	18.2 kg
EU070070-4040	615 x 615 x 770 mm	700 x 700 x 800 mm	400 / 400 mm	19.1 kg
EU070070-5040	615 x 615 x 870 mm	700 x 700 x 900 mm	400 / 500 mm	19.6 kg
EU080040-2010	715 x 315 x 270 mm	800 x 400 x 300 mm	100 / 200 mm	9.4 kg
EU080040-2020	715 x 315 x 370 mm	800 x 400 x 400 mm	200 / 200 mm	10.6 kg
EU080040-3010	715 x 315 x 370 mm	800 x 400 x 400 mm	100 / 300 mm	10.6 kg
EU080040-3020	715 x 315 x 470 mm	800 x 400 x 500 mm	200 / 300 mm	11.8 kg
EU080060-2010	715 x 515 x 270 mm	800 x 600 x 300 mm	100 / 200 mm	11.9 kg
EU080060-2020	715 x 515 x 370 mm	800 x 600 x 400 mm	200 / 200 mm	13.3 kg
EU080060-4010	715 x 515 x 470 mm	800 x 600 x 500 mm	100 / 400 mm	14.7 kg
EU080060-4020	715 x 515 x 570 mm	800 x 600 x 600 mm	200 / 400 mm	16.4 kg
EU080060-5010	715 x 515 x 570 mm	800 x 600 x 600 mm	100 / 500 mm	16.4 kg
EU080060-5020	715 x 515 x 670 mm	800 x 600 x 700 mm	200 / 500 mm	18 kg
EU080080-3010	715 x 715 x 370 mm	800 x 800 x 400 mm	100 / 300 mm	16.9 kg
EU080080-4010	715 x 715 x 470 mm	800 x 800 x 500 mm	100 / 400 mm	21.5 kg
EU080080-3020	715 x 715 x 470 mm	800 x 800 x 500 mm	200 / 300 mm	21.5 kg
EU080080-4020	715 x 715 x 570 mm	800 x 800 x 600 mm	200 / 400 mm	21.1 kg
EU090045-2010	815 x 365 x 270 mm	900 x 450 x 300 mm	100 / 200 mm	13 kg
EU090050-4010	815 x 415 x 470 mm	900 x 500 x 500 mm	100 / 400 mm	14.2 kg
EU090090-2010	815 x 815 x 240 mm	900 x 900 x 300 mm	100 / 200 mm	23 kg

Large Peli ISP2 case sizes

Ref.	Internal (L x W x H)	External (L x W x H)	Lid / Base	Weight
EU100050-3010	915 x 415 x 370 mm	1000 x 500 x 400 mm	100 / 300 mm	14.1 kg
EU100050-4010	915 x 415 x 470 mm	1000 x 500 x 500 mm	100 / 400 mm	16 kg
EU100050-5010	915 x 415 x 570 mm	1000 x 500 x 600 mm	100 / 500 mm	17.9 kg
EU100060-3010	915 x 515 x 370 mm	1000 x 600 x 400 mm	100 / 300 mm	16.8 kg
EU100060-4010	915 x 515 x 470 mm	1000 x 600 x 500 mm	100 / 400 mm	18.1 kg
EU100060-5010	915 x 515 x 570 mm	1000 x 600 x 600 mm	100 / 500 mm	19.8 kg
EU110070-3010	1015 x 615 x 370 mm	1100 x 700 x 400 mm	100 / 300 mm	21.3 kg
EU120050-2510	1115 x 415 x 320 mm	1200 x 500 x 350 mm	100 / 250 mm	15.5 kg
EU120050-3010	1115 x 415 x 370 mm	1200 x 500 x 400 mm	100 / 300 mm	16.8 kg
EU120050-2525	1115 x 415 x 470 mm	1200 x 500 x 500 mm	250 / 250 mm	18.1 kg
EU120050-3025	1115 x 415 x 520 mm	1200 x 500 x 550 mm	250 / 300 mm	18.9 kg
EU120050-2530	1115 x 415 x 520 mm	1200 x 500 x 550 mm	300 / 250 mm	18.9 kg
EU120050-3030	1115 x 415 x 570 mm	1200 x 500 x 600 mm	300 / 300 mm	19.8 kg
EU120060-3010	1115 x 515 x 470 mm	1200 x 600 x 400 mm	100 / 300 mm	19.8 kg
EU120060-3020	1115 x 515 x 470 mm	1200 x 600 x 500 mm	200 / 300 mm	19.8 kg
EU120060-3030	1115 x 515 x 570 mm	1200 x 600 x 600 mm	300 / 300 mm	22 kg
EU120060-5010W	1115 x 515 x 570 mm	1200 x 600 x 600 mm	100 / 500 mm	22 kg
EU120060-5020W	1115 x 515 x 670 mm	1200 x 600 x 700 mm	200 / 500 mm	24.5 kg
EU120060-5030W	1115 x 515 x 770 mm	1200 x 600 x 800 mm	300 / 500 mm	27 kg
EU120090-2010	1115 x 815 x 240 mm	1200 x 900 x 300 mm	100 / 200 mm	29.5 kg
EU160060-3020	1515 x 515 x 470 mm	1600 x 600 x 500 mm	200 / 300 mm	29 kg

Peli Hardigg case colours

Black

Grey

Orange

Yellow

Tan

Olive

Red

Blue

White

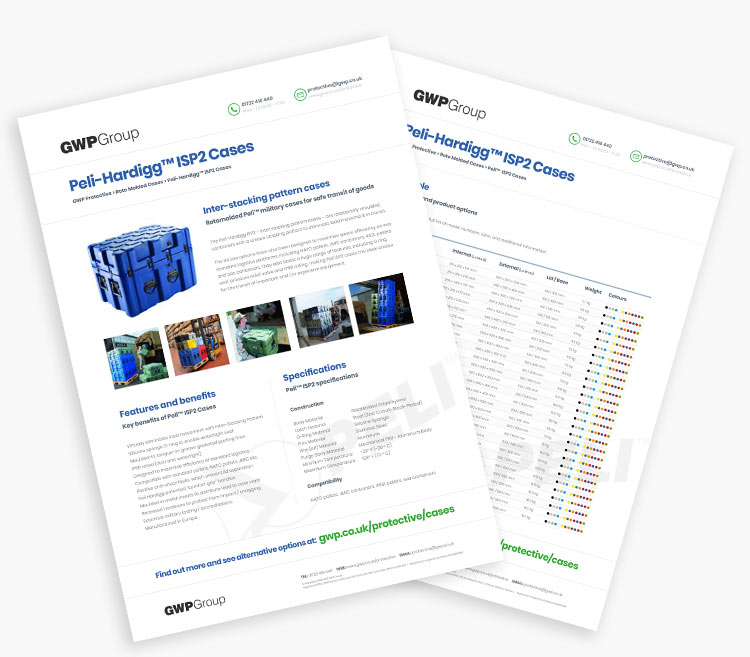

Peli ISP2 case datasheet (PDF)

Engineered foam inserts

Available for all cases

High-quality foam inserts can enhance any Peli ISP2 case (or alternative) your business uses.

Expert foam design

Work alongside an experienced design team to create custom-made Peli case inserts.

Aesthetic appeal

A vast range of colour and branding options (including laser-etched logos) enable a striking visual appearance.

UK manufactured

All foam inserts/packaging are manufactured in house at GWP, ensuring the highest quality.

Peli-Hardigg™ ISP2 case alternatives

If you cannot find a suitable size, do not need to stack your cases, or are just looking for alternatives, we can supply a wide range of Peli ISP2 alternatives.
