Foam Trays: Better Handling Efficiency & Part Protection

Custom Cut Foam

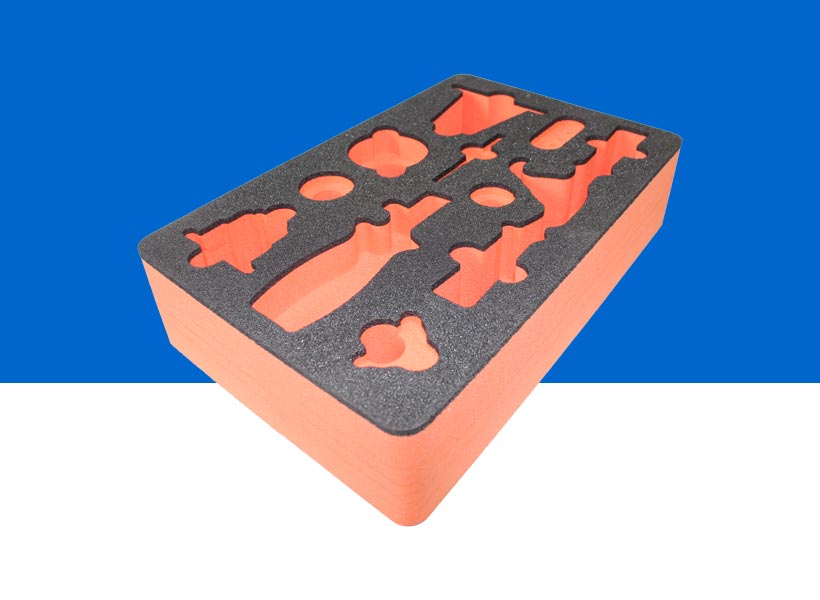

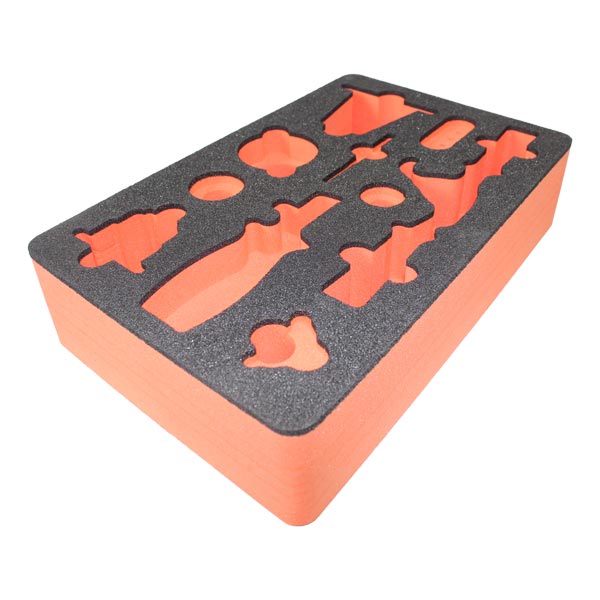

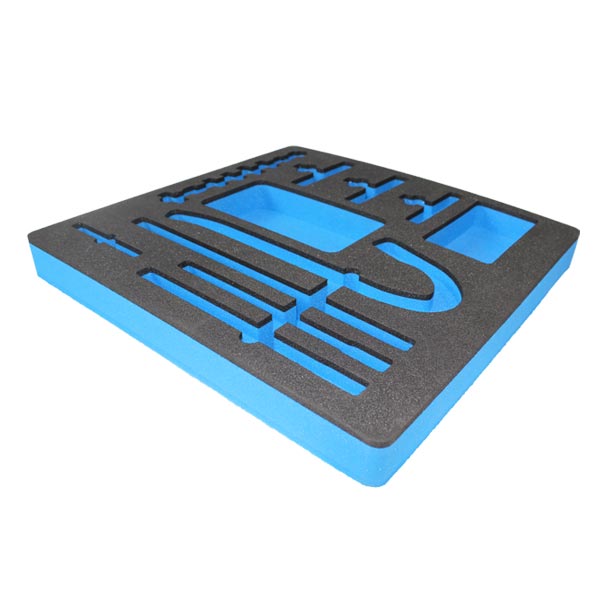

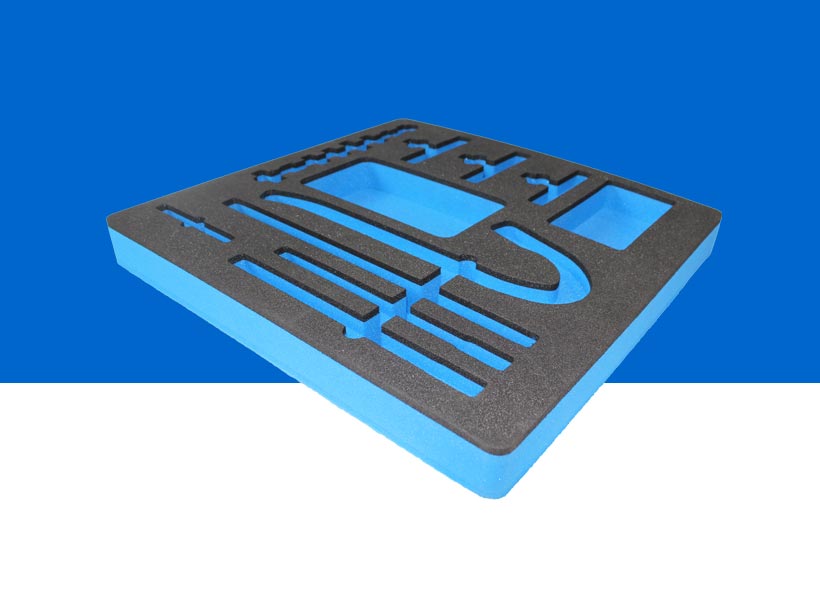

Foam handling / storage trays made to your exact requirements

Used for safe handling and storage of items within cases, plastic totes, containers and boxes – or as a standalone item – foam trays can be used in multiple layers to improve productivity and part density.

Being able to include precisely recessed pockets to be a perfect for specific tools, products or components means they also offer improved protection when compared with vac formed trays, and are an ideal solution for low volume, high value applications. Read More

Available Colours:

No obligation (and no pressure) quotes for any case
Impartial advice from UK based experts
Competitive pricing and full customisation options

Description

Detailed information on Foam Trays

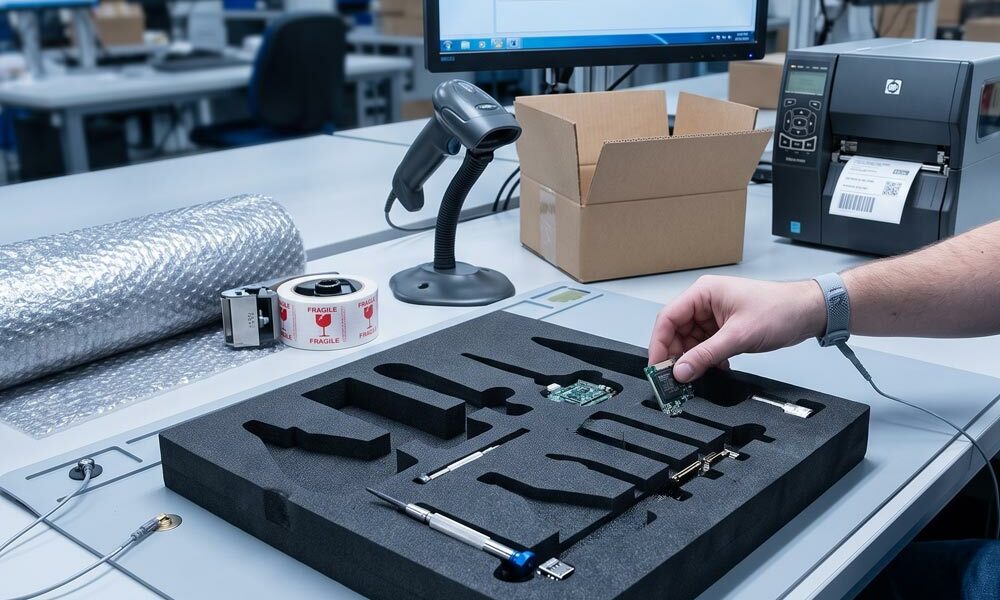

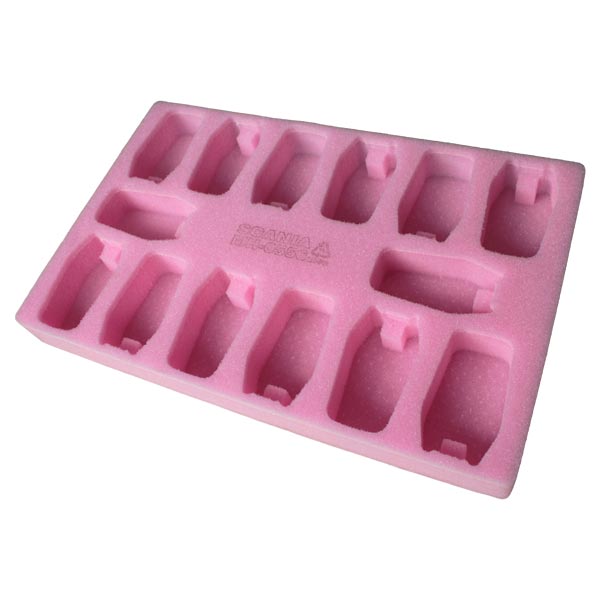

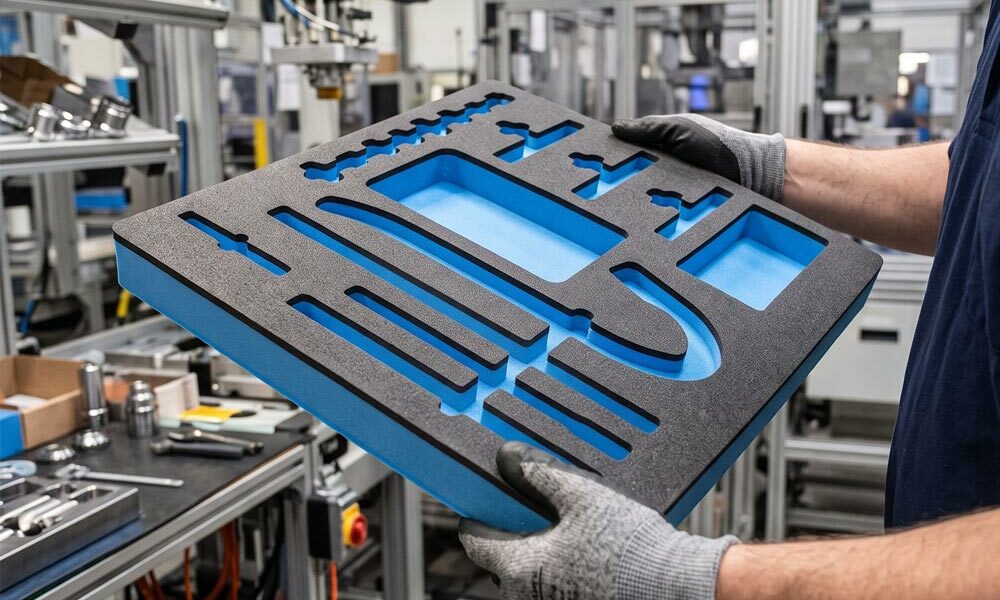

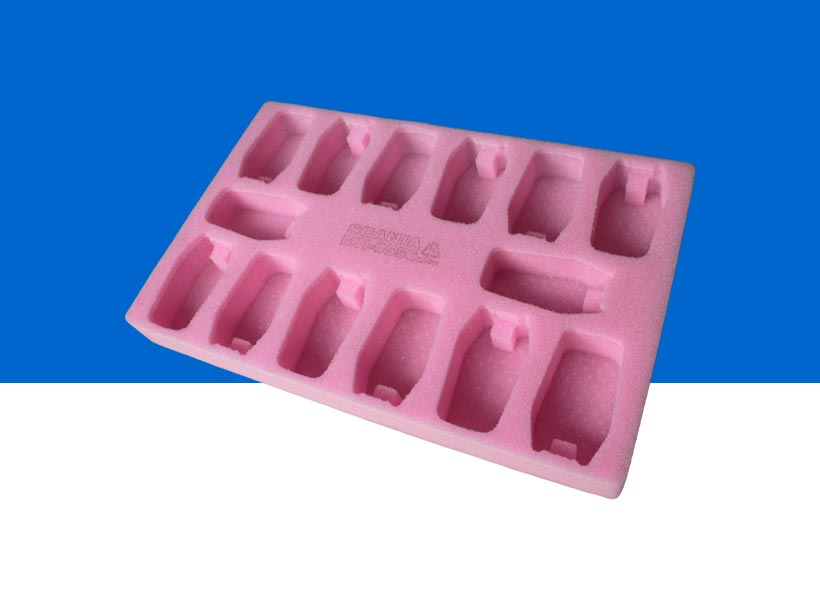

Industrial foam trays are often used to improve efficiency of handling within production and manufacturing environments (such as assembly lines). However, they can be used for a wide range of differing applications.

They allow for multiple parts, products or equipment to be stored and moved safely within an outer case, tote or container, whilst also allowing for much quicker packing and unloading where required. Besides this they can also aid quick visual checks of contents, as well as improving identification of specific items as well.

All of these benefits are further enhanced with the ability to use foam trays as a multi-layer solution within a container (unlike foam dividers). This improves part density / maximises available space further, allowing even greater productivity gains.

Conversely, foam trays will also prevent overloading of totes (as there is only a finite number of “spaces”), which as well as helping with part protection can also ensure safe lifting and handling practices are adhered to.

This final point can also be aided by the laser etching of handling instructions directly onto the foam surfaces, along with part numbers, batch IDs and other useful information.

Foam part protection

However, besides the improvement in general productivity, foam trays also offer one other significant benefit – part protection during handling and transit.

With profiles cut into the foam that perfectly match the components to be stored / moved, it not only prevents movement of the contents (a major source of damage) but offers a high level of cushioning protection too. For very high value components or parts, this protection can even be calculated and implemented to the optimum level, using specialist software and manufacturing techniques.

The surfaces of the foam also protect the finish on parts for components too. This makes foam trays ideal for applications such as automotive interiors where scuffs or marring can lead to components being rejected (and the associated costs).

And finally, as there is no tooling cost (unlike with vac formed trays) foam trays are an ideal choice for low and mid volume requirements.

Key Benefits of foam trays at a glance

Offers excellent protection for parts / components during handling
Profiles can be adapted to ensure a perfect fit for specific items
Can be layered within a container to improve part density
Can also be used as a standalone handling solution
Prevents overloading of outer containers
Enables faster packing and unloading on production lines
Can be used as part of wider supply chain
Soft foam material also prevents surface scuffs / scratches to finishes on items within
Laser etching of part numbers, batch IDs and handling instructions etc.

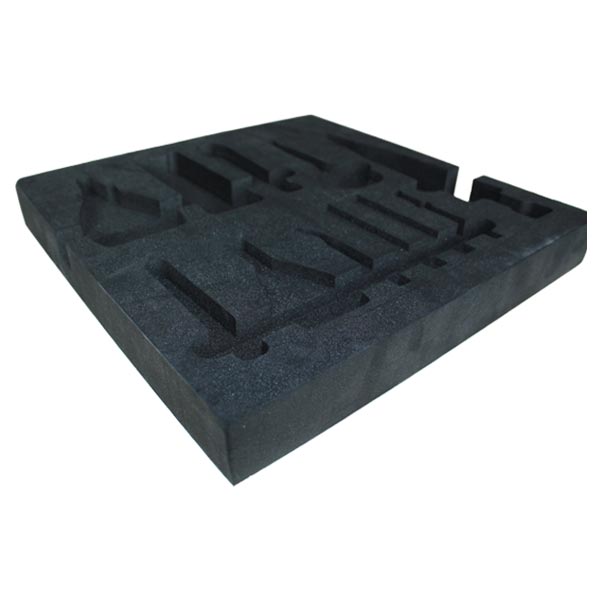

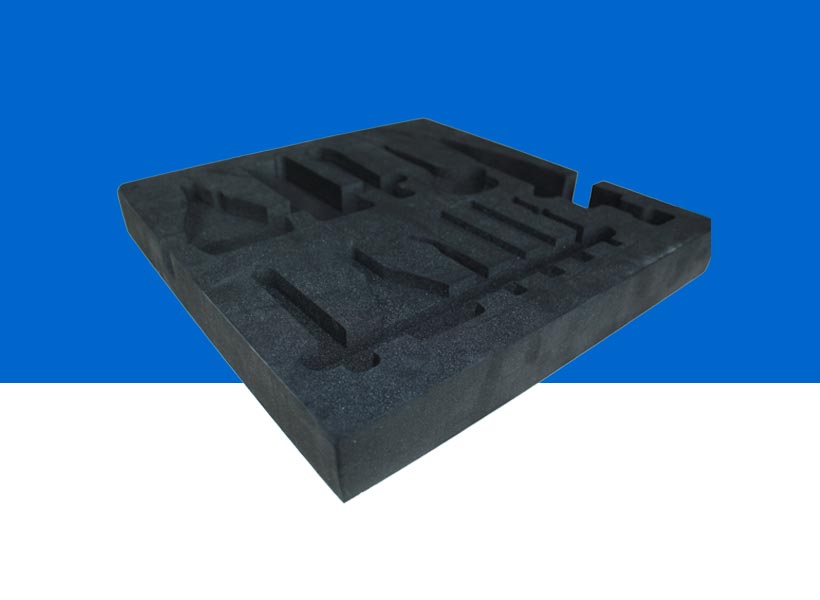

Anti-static versions available for electronics

FAQs

Common questions about foam trays

Please expand the sections below to see answers to all of the commonly asked questions concerning foam trays. If you still need further info however, then please get in touch for assistance.

Why should I use foam trays and not dividers?

Foam trays and dividers are two slightly different ways of achieving the same result – but with important differences. Foam dividers use less material, so tend to be lower cost. Foam trays however are removable for the outer container, can be layered within it, and offer higher overall levels of protection.

Would vac formed trays be a better option?

Foam trays – as they have low tooling costs – and as a result are a better choice for low to mid volume requirements when compared with vac formed trays. However, there is a threshold when using vac formed trays becomes more cost effective (considerably so at higher volumes). Vac formed trays do not provide any cushioning protection however, although are more suited to clean room applications.

What outer containers are foam trays suitable for?

Foam trays are the perfect way to enhance Correx® totes and boxes, Euro Containers and a wide range of ESD handling solutions (anti-static versions are available). All of these can be sourced alongside your foam trays from GWP Protective to ensure a perfect fit and compatibility between outer container and insert.

Is foam suitable for clean room applications?

Foam dunnage is not ideal for clean room applications for a couple of reasons. Firstly, there is a small chance it can potentially shed fibres that can contaminate samples, products etc. It is also hard to sterilise due to the nature of surfaces when machined. Both vac formed trays and Correx® dividers would be a more suitable alternative for applications of this nature.

What are foam trays made from?

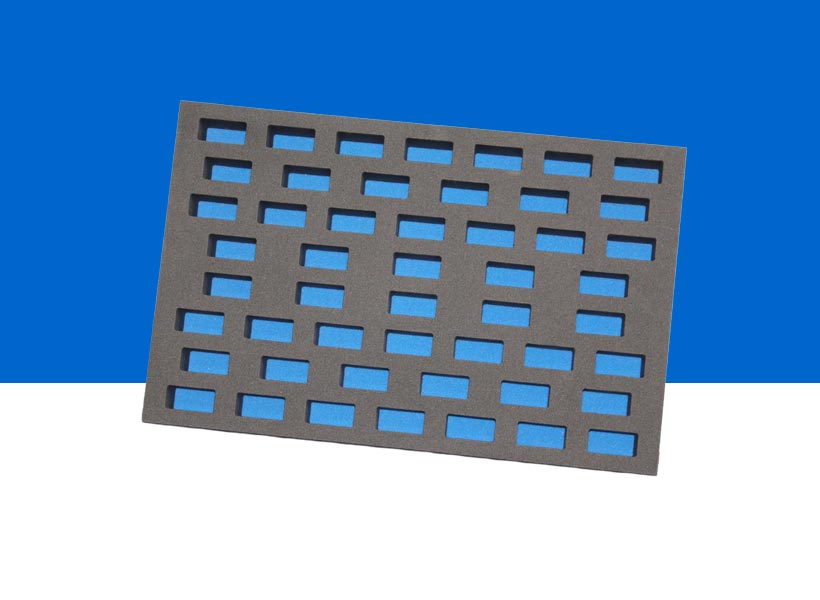

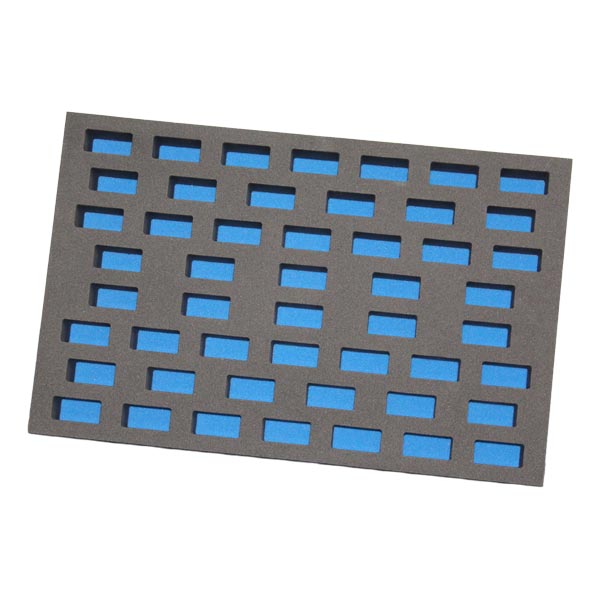

Foam trays are manufactured from Plastazote® polyethylene foam – a market leading foam manufactured by Zotefoam® (GWP Protective are official converters of this material – also used in a wide range of case inserts, packaging and foam conversion processes). It provides a wide range of different properties depending on the grade chosen, allowing for protection that is tailored to your exact requirements.

Can foam trays be tailored to a specific part or component?

Due to the various design software and manufacturing techniques employed by foam converters (GWP Protective being amongst the leading converters in the UK), it is possible to fully tailor foam trays to be a perfect fit for virtually any product or item. This in turn enhances the level of protection offered.

Free Quotes / Advice

Find the perfect foam tray for your application

Wouldn’t it be nice of you could source all of your handling containers, foam dunnage and trays from a single source? And get advice that is actually impartial on which is the best option for your specific application? A dedicated project manager? Free quotes with no obligation?

Working with GWP Protective, your business can realise the benefits of all of this, as well as tapping into almost 30 experience of successful foam inserts handling products.

So, if you need any foam trays, dunnage, inserts or outer containers, please don’t hesitate to get in touch.

Alternative Foam Options

Dividers, inserts, packaging and more

If you don’t think that foam trays are exactly right for your specific application, there are a number of options that you can source directly from GWP Protective.
