Zarges K470 Sizes

Custom Design

Foam inserts, printing and more

UK trade supplier

Tailored pricing on all orders

Case and foam experts

More than 25 years experience

Find the Optimum Aluminium Transit Case

Full list of sizes and details of the Zarges K470 case range

Zarges K470 aluminium transit cases provide one the broadest range of sizes currently available, with 25 different options in total (and custom sizes available on request).

Whilst this means that there is a suitable case to protect virtually any equipment, tools, products, or kit, looking at a list of Zarges K470 sizes can be somewhat daunting. This is why the below table has been created – allowing you to look at all of the K470 case options in a single place.

Saying that, a team of friendly advisors at GWP will be happy to provide guidance on selecting the best case (and foam insert) option for your specific application. If this sounds as though it could be useful, simply get in touch on 01722 416 440, or email protective@gwp.co.uk.

Size Table

Complete list of Zarges K70 aluminium case sizes, weights etc.

Product Ref. Internal (L x W x H) External (L x W x H) Volume Weight Wheels Colours
Zarges K470 40835 350 × 250 × 150 mm 400 x 300 x 180 mm 13 l 2.6 kg Optional Zarges Aluminium Case Colours
Zarges K470 40677 350 × 250 × 310 mm 400 x 300 x 340 mm 27 l 3.1 kg Optional Zarges Aluminium Case Colours
Zarges K470 40810 550 × 350 × 150 mm 600 x 400 x 180 mm 29 l 4.2 kg Optional Zarges Aluminium Case Colours
Zarges K470 40568 550 × 350 × 220 mm 600 x 400 x 250 mm 42 l 4.8 kg Optional Zarges Aluminium Case Colours
Zarges K470 40678 550 × 350 × 310 mm 600 x 400 x 340 mm 60 l 5 kg Optional Zarges Aluminium Case Colours
Zarges K470 40564 550 × 350 × 380 mm 600 x 400 x 410 mm 73 l 5.3 kg Optional Zarges Aluminium Case Colours
Zarges K470 40849 550 × 550 × 220 mm 600 x 600 x 250 mm 66 l 5.6 kg Optional Zarges Aluminium Case Colours
Zarges K470 40859 550 × 550 × 380 mm 600 x 600 x 410 mm 115 l 6.6 kg Optional Zarges Aluminium Case Colours
Zarges K470 40836 550 × 550 × 580 mm 600 x 600 x 610 mm 175 l 7.8 kg Optional Zarges Aluminium Case Colours
Zarges K470 40837 600 × 430 × 450 mm 650 x 480 x 480 mm 116 l 6.5 kg Optional Zarges Aluminium Case Colours
Zarges K470 40839 600 × 560 × 440 mm 650 x 610 x 470 mm 148 l 7.4 kg Optional Zarges Aluminium Case Colours
Zarges K470 40841 690 × 460 × 380 mm 740 x 510 x 410 mm 121 l 6.9 kg Optional Zarges Aluminium Case Colours
Zarges K470 40842 690 × 640 × 340 mm 740 x 690 x 370 mm 150 l 8 kg Optional Zarges Aluminium Case Colours
Zarges K470 40843 690 × 640 × 430 mm 740 x 690 x 460 mm 190 l 8.6 kg Optional Zarges Aluminium Case Colours
Zarges K470 40565 750 × 550 × 380 mm 800 x 600 x 410 mm 157 l 10 kg Optional Zarges Aluminium Case Colours
Zarges K470 40566 750 × 550 × 580 mm 800 x 600 x 610 mm 239 l 12 kg Optional Zarges Aluminium Case Colours
Zarges K470 40844 780 × 480 × 520 mm 830 x 530 x 550 mm 195 l 11.1 kg Optional Zarges Aluminium Case Colours
Zarges K470 40845 900 × 480 × 400 mm 950 x 530 x 430 mm 173 l 11 kg Optional Zarges Aluminium Case Colours
Zarges K470 40846 900 × 640 × 450 mm 950 x 690 x 480 mm 259 l 13.4 kg Optional Zarges Aluminium Case Colours
Zarges K470 40567 950 × 450 × 380 mm 1000 x 500 x 410 mm 162 l 10.9 kg Optional Zarges Aluminium Case Colours
Zarges K470 40847 1150 × 350 × 150 mm 1200 x 400 x 180 mm 60 l 7.5 kg Optional Zarges Aluminium Case Colours
Zarges K470 40580 1150 × 750 × 480 mm 1200 x 800 x 510 mm 414 l 20 kg Optional Zarges Aluminium Case Colours
Zarges K470 40848 1350 × 400 × 220 mm 1400 x 450 x 250 mm 119 l 9.5 kg Optional Zarges Aluminium Case Colours
Zarges K470 40875 1550 × 550 × 465 mm 1600 x 600 x 495 mm 396 l 25 kg Optional Zarges Aluminium Case Colours
Zarges K470 40876 1650 × 750 × 670 mm 1700 x 800 x 700 mm 829 l 30 kg Optional Zarges Aluminium Case Colours
Product Ref. Internal (L x W x H) External (L x W x H) Volume Weight Wheels Colours

Guidance

Tips on using the Zarges K470 sizes table

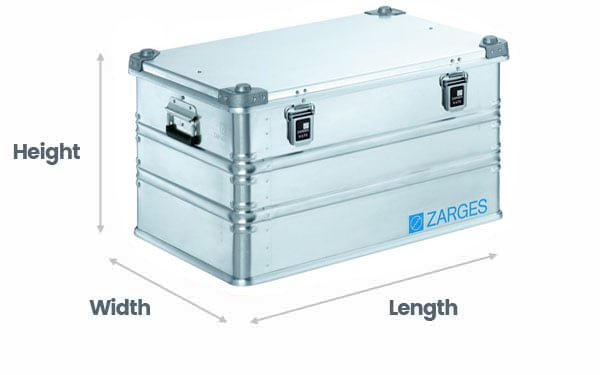

The image to the right / below this text illustrates the measuring convention for the Zarges K470 cases (and as such how this relates to the dimensions as provided in the above table). The aim is of course to help you decide on the most suitable case for your specific application.

Whilst the table has been created with a view to providing all of the relevant information you could need, if there are any other details you require a GWP team member is on hand to help. You can speak with a friendly, knowledgeable advisor on 01722 416 440 or email protective@gwp.co.uk for further assistance.

Zarges K470 Size Guide

Alternative Aluminium Cases

Other case options similar to the Zarges K470 range

Zarges K410 40765 aluminium case

Zarges K410

Zarges Eurobox case colours

4 Sizes
Basic Range

Zarges Eurobox size chart

Zarges Eurobox

Zarges Eurobox case colours

10 Sizes
Durable Construction

Zarges Box

Zarges Box

Zarges Eurobox case colours

5 Sizes
Cost Effective Option

Bott Cases

Bott Cases

Zarges Eurobox case colours

5 Sizes
Cost Effective Option

Zarges K411 Cases

Zarges K411

Zarges Eurobox case colours

5 Sizes
With / Without Lining

Aluminium kit skip

Kit Skips

Zarges Eurobox case colours

20+ Sizes
Used by Sports Teams

Flightcase foam

Custom Flight Cases

Manufactured in the UK to any size and specification

View All Aluminium

Click here to see the full aluminium case range

Get In Touch

The ideal aluminium case sizes whatever your application

Regardless of whether you are looking to use Zarges K470 cases to protect important equipment, ship items via air freight, or even to use them for transporting sports kit, there is a suitable case for you.

Please get in touch to request a free, no obligation quote on the aluminium cases you need for your business or organisation.
