Explorer case dimensions and technical info

If you need a case to protect your tools or equipment, this handy Explorer case size table lets you quickly find the best option.

There are 32 Explorer case sizes in total. The smallest option is 216 x 180 x 102 mm, while the largest Explorer case is 1178 x 718 x 427 mm. Explorer cases are available in four colours – black, silver-grey, olive-green and orange.

At GWP, we can supply all of the different Explorer cases. We can also provide full customisation, including foam inserts, so that they are perfect for your specific application.

Explorer case size guide

Explorer case size table

Ref. Internal (L x W x H) External (L x W x H) Lid / Base Weight Wheels
1908 190 x 125 x 85 mm 216 x 180 x 102 mm 20 / 65 mm 0.7 kg No
1913 190 x 125 x 135 mm 216 x 180 x 152 mm 20 / 115 mm 0.85 kg No
2209 220 x 160 x 95 mm 246 x 215 x 112 mm 20 / 75 mm 0.88 kg No
2214 220 x 160 x 145 mm 246 x 215 x 162 mm 20 / 125 mm 1.16 kg No
2712 276 x 200 x 120 mm 305 x 270 x 144 mm 35 / 85 mm 1.62 kg No
2717 276 x 200 x 170 mm 305 x 270 x 194 mm 35 / 135 mm 1.93 kg No
3005 300 x 210 x 58 mm 326 x 269 x 75 mm 20 / 38 mm 1.1 kg No
3317 330 x 234 x 170 mm 360 x 304 x 194 mm 68 / 102 mm 2.29 kg No
3317W 331 x 350 x 170 mm 360 x 420 x 194 mm 68 / 102 mm 2.92 kg No
3818 380 x 270 x 180 mm 410 x 340 x 205 mm 45 / 135 mm 3.14 kg No
4412 445 x 345 x 125 mm 474 x 415 x 149 mm 47 / 78 mm 3.4 kg No
4419 445 x 345 x 190 mm 474 x 415 x 214 mm 47 / 143 mm 4 kg No
4820 480 x 370 x 205 mm 520 x 435 x 230 mm 50 / 155 mm 4.64 kg No
5117 517 x 277 x 173 mm 546 x 347 x 197 mm 50 / 123 mm 3.8 kg No
5122 517 x 277 x 217 mm 546 x 347 x 247 mm 50 / 167 mm 6 kg 2
5140 516 x 296 x 402 mm 581 x 381 x 455 mm NA 7.52 kg 4
5325 538 x 405 x 250 mm 607 x 475 x 275 mm 60 / 190 mm 7 kg No
5326 538 x 405 x 250 mm 627 x 475 x 292 mm 60 / 190 mm 10 kg 2
5822 580 x 440 x 220 mm 650 x 510 x 245 mm 60 / 160 mm 7.16 kg No
5823 580 x 440 x 220 mm 670 x 510 x 262 mm 60 / 160 mm 9.17 kg 2
5833 580 x 440 x 330 mm 670 x 510 x 372 mm 60 / 270 mm 10.54 kg 2
7630 765 x 485 x 305 mm 860 x 560 x 355 mm 60 / 245 mm 13.56 kg 2
7641 765 x 485 x 415 mm 860 x 560 x 460 mm 60 / 355 mm 15.02 kg 2
7726 770 x 580 x 265 mm 836 x 641 x 304 mm 90 / 175 mm 10.3 kg 2
7745 770 x 580 x 450 mm 836 x 641 x 489 mm 90 / 360 mm 15.5 kg 2
9413 939 x 352 x 137 mm 989 x 415 x 157 mm 43 / 94 mm 6.7 kg 2
10826 1080 x 620 x 260 mm 1178 x 725 x 287 mm 60 / 200 mm 17 kg No
10840 1080 x 620 x 400 mm 1178 x 718 x 427 mm 200 / 200 mm 19.8 kg 4
11413 1136 x 350 x 135 mm 1189 x 415 x 159 mm 42 / 93 mm 7.8 kg 2
13513 1350 x 350 x 135 mm 1430 x 415 x 159 mm 42 / 93 mm 8.7 kg 2
13527 1350 x 350 x 272 mm 1430 x 415 x 296 mm 42 / 230 mm 11.7 kg 6
15416 1540 x 377 x 160 mm 1629 x 456 x 183 mm 42 / 118 mm 11.3 kg 2

Explorer case colours

Black

Grey

Olive

Orange

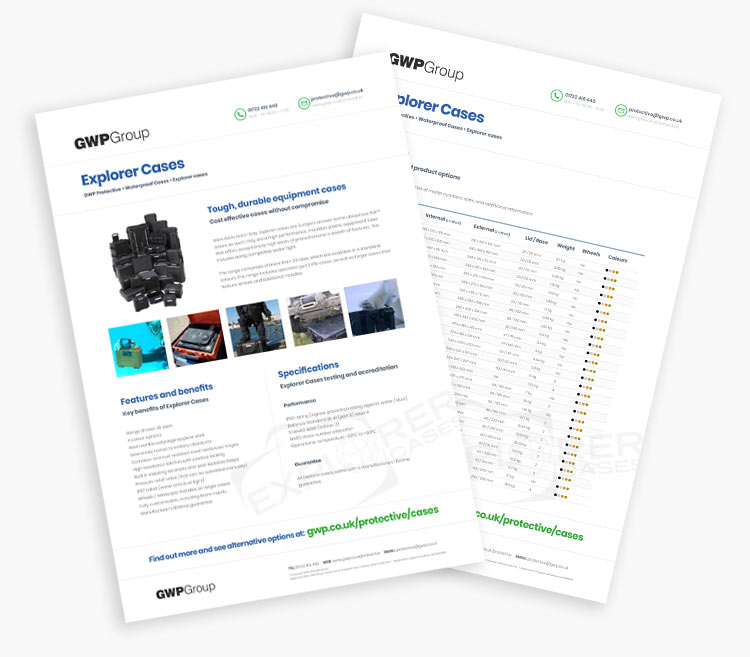

Explorer case datasheet (PDF)

Explorer case datasheet

Engineered foam inserts

foam for cases

Available for all cases

High-quality foam inserts can enhance any Explorer case your business uses.

expert design

Expert foam design

Work alongside an experienced design team to create custom-made Explorer case inserts.

branded foam

Aesthetic appeal

A vast range of colour and branding options (including laser-etched logos) enable a striking visual appearance.

UK manufactured

UK manufactured

All foam inserts/packaging are manufactured in house at GWP, ensuring the highest quality.

Explorer case alternatives

As independent case suppliers, we can supply you with one of the broadest range of branded waterproof case options in the UK.
