ESD Euro containers
If you need to store, transport or handle heavy or large numbers of ESD (electrostatic discharge) components or products, the SSI Schaefer EF Series offers the most robust option.

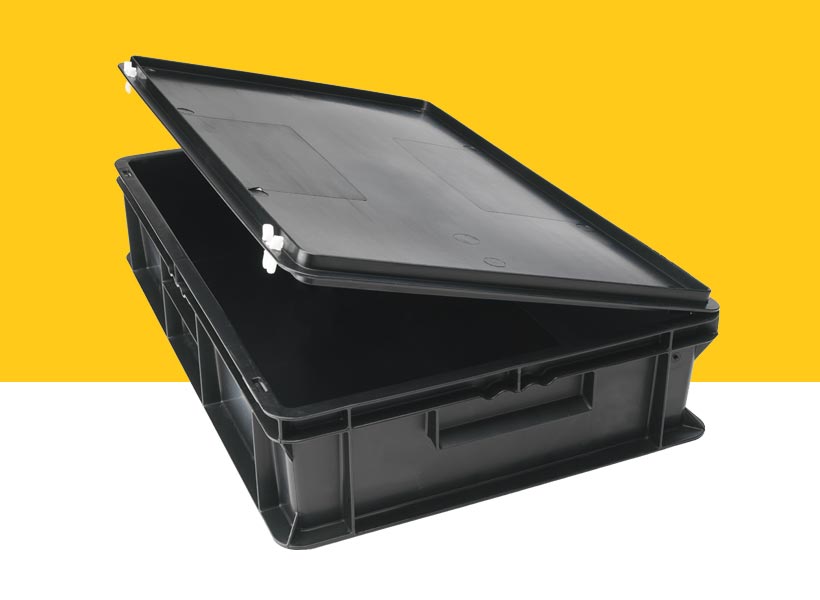

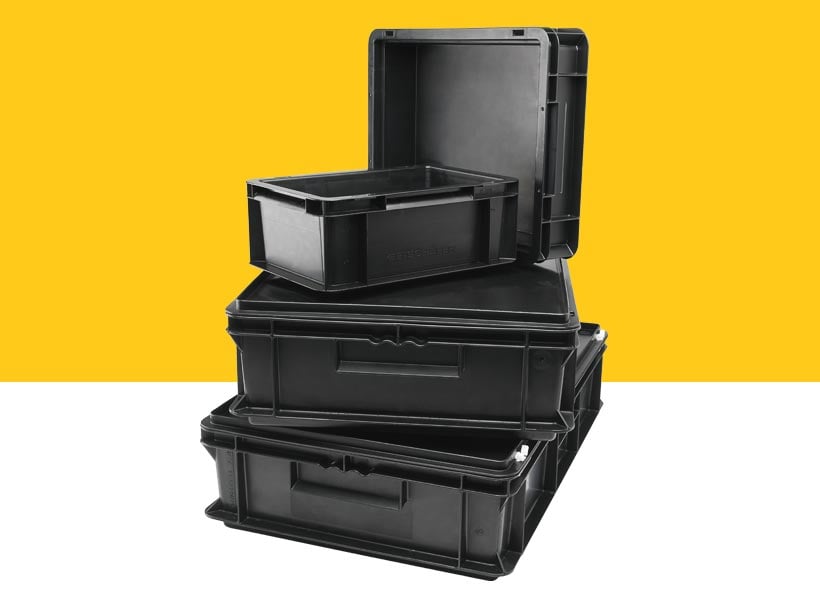

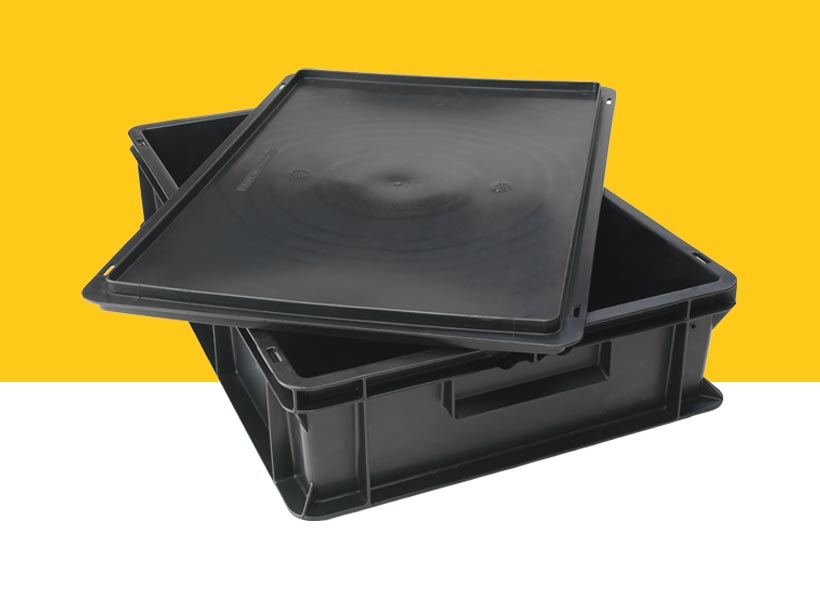

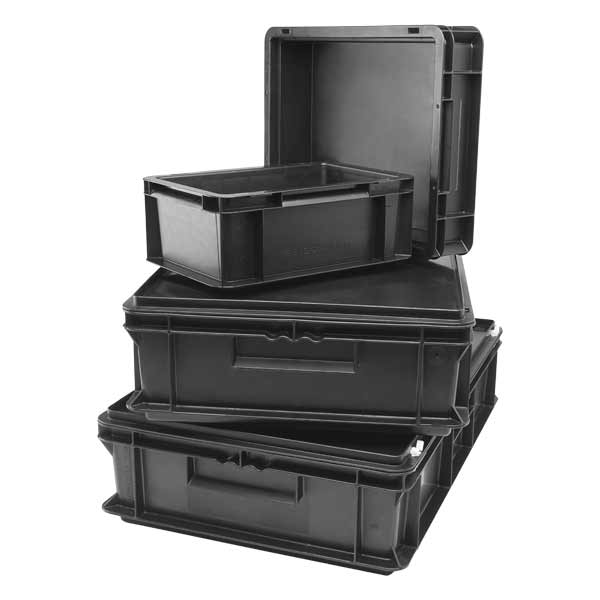

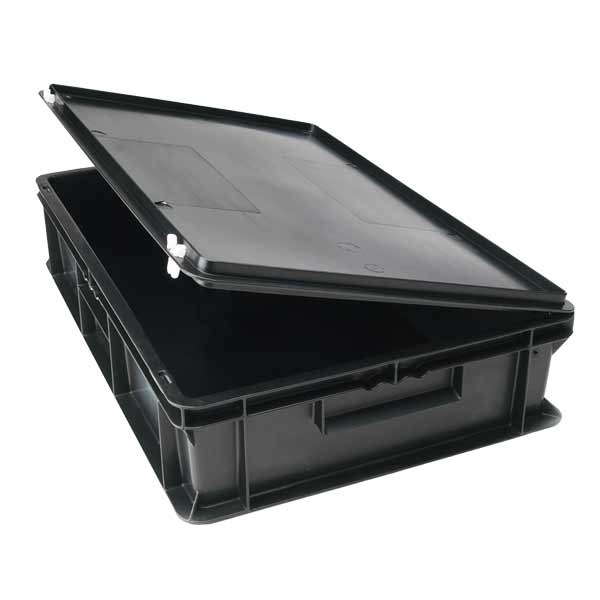

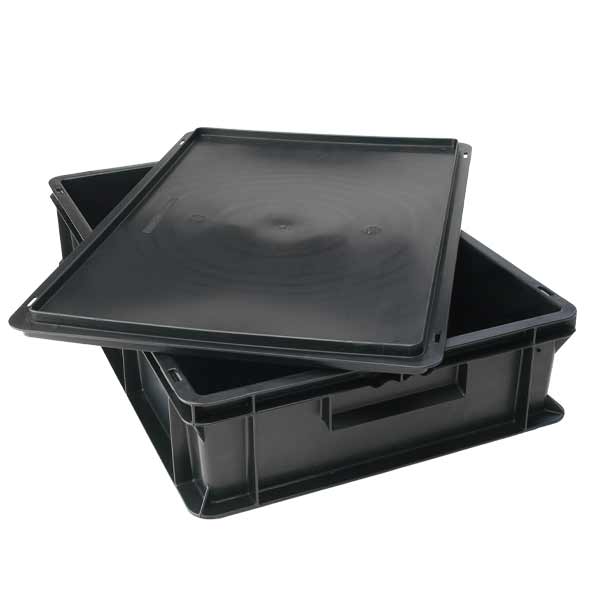

The SSI Schaefer EF Series (Euro Fix) is a range of ESD Euro containers. Their conductive Polypropylene material protects contents from static, whilst also being suitable for loads up to 20kg. The 17 sizes work seamlessly with the majority of industry-standard racking, conveyors, pallets, and transport. Stacking corners, integral handles, and optional lids further improve usability, too.

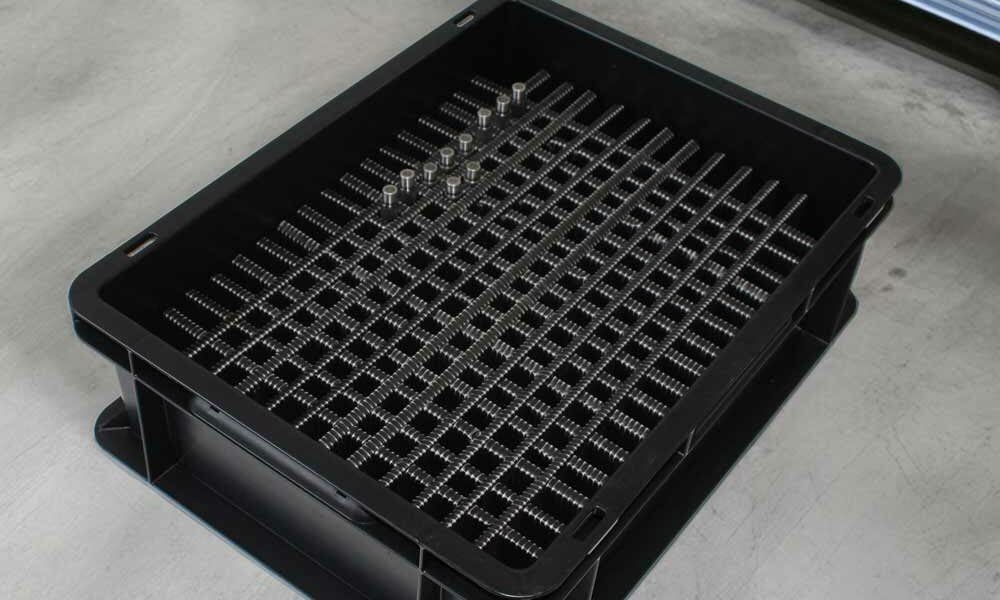

GWP Conductive are the sole UK stockholder of SSI Schaefer conductive tote boxes. Alongside short lead times and competitive pricing, this also allows us to customise your ESD tote containers with options including divider sets and ESD foam inserts.
Sizes and technical information
Product sizes
| Part No. | Internal Size | External Size |
|---|---|---|
| EF 2120 | 152 x 104 x 102 mm | 200 x 150 x 117 mm |
| EF 3120 | 252 x 152 x 102 mm | 300 x 200 x 117 mm |
| EF 4040 | 357 x 257 x 27 mm | 400 x 300 x 40 mm |
| EF 4080 | 357 x 257 x 67 mm | 400 x 300 x 80 mm |
| EF 4120 | 352 x 254 x 105 mm | 400 x 300 x 120 mm |
Open hand holes
| Part No. | Internal Size | External Size |
|---|---|---|
| EF 4140 | 353 x 253 x 116 mm | 400 x 300 x 140 mm |
| EF 4170 | 353 x 253 x 146 mm | 400 x 300 x 170 mm |
| EF 6180 | 552 x 352 x 156 mm | 600 x 400 x 180 mm |
| EF 6220 | 551 x 351 x 196 mm | 600 x 400 x 220 mm |
| EF 6240 | 552 x 352 x 216 mm | 600 x 400 x 240 mm |
Compatible insert containers
| Part No. | Internal Size | Capacity | To Fit |
|---|---|---|---|
| EK 6161 | 140 x 90 x 80 mm | 84 l | 600 x 400 |
| EK 6081 | 179 x 140 x 80 mm | 48 l | 600 x 400 |
| EK 6041 | 279 x 179 x 80 mm | 36 l | 600 x 400 |
| EK 6042 | 279 x 179 x 150 mm | 18 l | 600 x 400 |
Benefits of ESD Euro containers
By using the SSI Schaefer ESD Euro containers at your business, you can expect several benefits:
FAQs
What does EF stand for?
The EF in the SSI EF Series containers stands for “Euro Fix”. What this essentially means is that they are the correct size to work with most standard equipment, racking, pallets, etc., used in warehouses and production facilities throughout Europe.
What size are EF series conductive euro containers available in?
There are 17 sizes within the EF series range of tote containers. However, it is possible to subdivide these with inserts, including the EF Series insert trays. The sizes are compatible with the vast majority of standard conveyors, racking, warehouse equipment and transport providers.
Are moulded plastic ESD containers more expensive than corrugated plastic/cardboard?
Whilst the initial investment required to purchase moulded ESD plastic containers is typically higher than for corrugated cardboard or Correx® equivalents, the material’s strength and durability offer improved longevity. As a result, the longer-term or overall “lifetime” costs can often be lower, due to their increased lifespan and reusability.
Are EF Series containers stackable?
EF Series containers have a built-in stacking feature. Besides minimising the risk of poor or unsafe stacking of containers, this feature also enables optimal use of space in your plant or factory. The integrated handle allows your production or warehouse teams to quickly and easily lift and move the containers.
Are there MOQs for SSI Schaefer products?
The extensive stockholding of SSI Schaefer plastic totes at GWP means you can order them cost-effectively in practically any volume. Plus, with lead times as short as 48 hours, you can reduce your stock holding, creating space within your facility for other items or increased production capacity.
Why GWP Conductive?
35+ years of experience
GWP Conductive, formerly Corstat® Containers, have been designing, manufacturing and supplying ESD packaging for over three decades.
UK ESD packaging specialists
We have an award-winning team of designers and experienced product experts who understand the technical intricacies of ESD packaging.
Market leaders
Being specified by OEM manufacturers since the dawn of silicon technology, GWP Conductive packaging products have over 80% market share.
A business you can trust
As well as the close working relationship with SSI Schaefer, GWP Conductive is also part of the UK’s largest packaging distributor, Macfarlane Group PLC.
